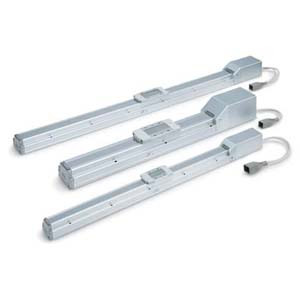

SMC LEFS25AA-200-R56P1D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS25AA-200-R56P1D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor and a servo motor, both operating at 24 VDC. It boasts a maximum work load capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable performance in various applications. This actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, making it suitable for environments requiring stringent cleanliness standards. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also includes an AC servo motor option, offering high output power of 100/200/400 W and enhanced high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it ideal for dynamic applications. The pulse input type and internal absolute encoder (for the LECSB/C/S) further enhance its precision, with a high precision type positioning repeatability of ±0.01 mm. Compatible drivers for the AC servo motor include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. This versatile actuator is engineered to meet the demands of modern automation systems, providing reliable and precise motion control solutions.
