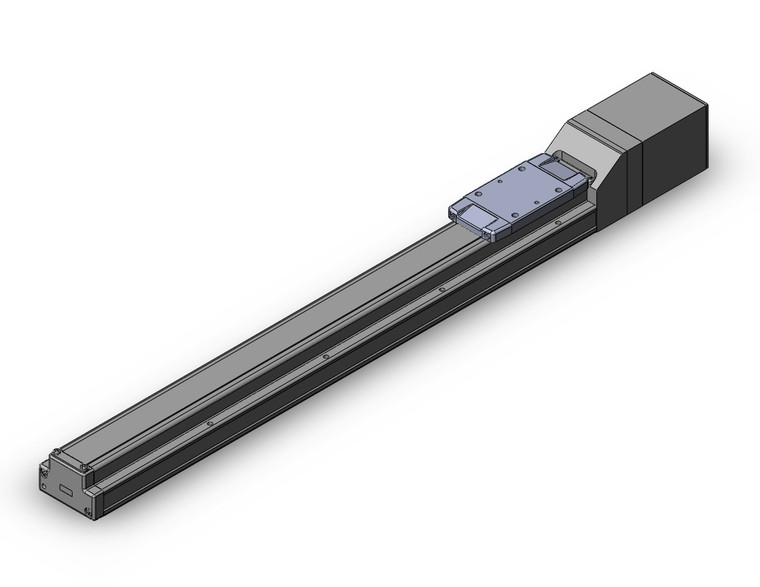

SMC LEFS25AA-400-R56N3 Ball Screw Drive Slider Actuator

SMC LEFS25AA-400-R56N3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS25AA-400-R56N3
Availability:
Contact us to confirm availability and lead times.
$1,490.00
Condition:
New
Current Stock:
Description
The SMC LEFS25AA-400-R56N3 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), making it versatile for various applications. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable operation. This actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, making it suitable for cleanroom environments (11-LEFS only). It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also includes an AC Servo Motor option, offering high output power (100/200/400 W) and improved high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000mm/S², making it ideal for dynamic applications. The pulse input type and internal absolute encoder (for the LECSB/C/S) enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers for the AC Servo Motor include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with some models being discontinued. This actuator is engineered for high performance and precision, making it a reliable choice for demanding industrial applications.
Additional Information
Accuracy:
Basic
Size:
25
Motor Mounting Position:
In-line
Motor Type:
Servo motor (24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 400 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
5 m
Controller Type:
LECA6 Step Fata Input Type NPN (LECP6 Manufacture discontinued)
I/O Cable Length, Communication Plug:
3 m
Controller Mounting:
Screw Mounting
