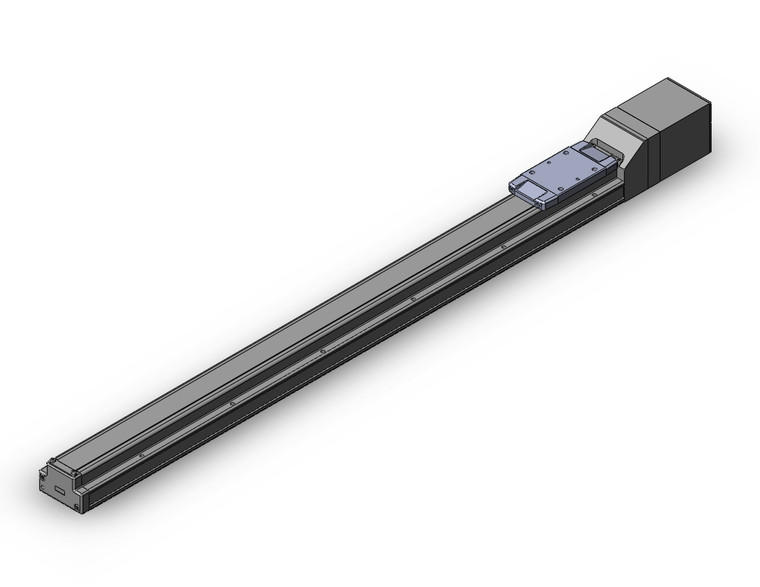

SMC LEFS25AA-600-RB6P5D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS25AA-600-RB6P5D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor and a servo motor, both operating at 24 VDC. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring precise and reliable operation. Engineered to meet clean specifications, it complies with ISO Class 4 (ISO14644-1) standards, making it suitable for environments requiring stringent cleanliness. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also includes an AC Servo Motor option, offering high output power of 100/200/400 W. It is designed for improved high-speed transfer capabilities and features high acceleration and deceleration rates of up to 20000mm/S². The pulse input type actuator is equipped with an internal absolute encoder, enhancing its precision with a positioning repeatability of ±0.01 mm for high precision types. Compatible with various drivers such as LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, this actuator is versatile and adaptable to different applications. Note that some driver models, including LECSB-S, LECSC-S, and LECSS-S, have been discontinued. The SMC LEFS25AA-600-RB6P5D is an ideal choice for applications demanding high precision, speed, and cleanliness.
