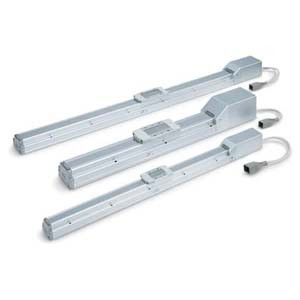

SMC LEFS25B-400-R5AP1D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,265.00
The SMC LEFS25B-400-R5AP1D is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), making it suitable for a wide range of applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. The actuator complies with ISO Class 4 clean specifications, making it ideal for cleanroom applications (11-LEFS only).
The LEFS Series is compatible with a variety of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For those requiring high output, the AC Servo Motor version offers 100/200/400 W options, enhanced high-speed transfer capabilities, and impressive acceleration/deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (for the LECSB/C/S) further enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm.
Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with some models also discontinued. This actuator is engineered for high performance and precision, making it an excellent choice for industries requiring meticulous control and reliability.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 400 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 5 m
- Controller Type:
- LECPA Pulse Input Type PNP
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- DIN Rail Mounting
