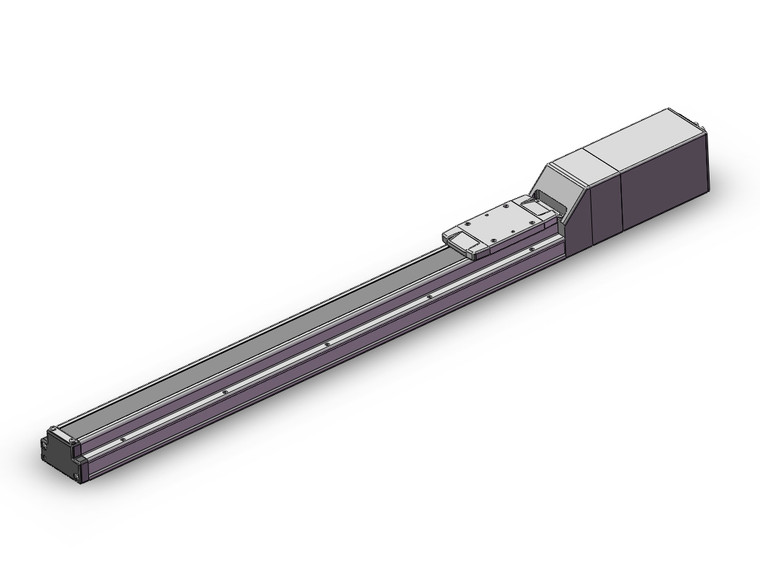

SMC LEFS25S2B-450-S5A1H Ball Screw Drive Actuator

SMC LEFS25S2B-450-S5A1H LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
LEFS25S2B-450-S5A1H
Availability:
Contact us to confirm availability and lead times.
$2,250.00
Condition:
New
Current Stock:
Description
The SMC LEFS25S2B-450-S5A1H is a high-performance electric actuator designed for precision and efficiency. Featuring a slider type ball screw drive, this actuator is powered by an AC servo motor, ensuring reliable and smooth operation. It is part of the LEFS Series, known for its robust step motor technology and compatibility with a wide range of controllers, including JXC51, JXC61, and more. This actuator can handle a maximum workload of 65 kg, making it suitable for demanding applications. It boasts a positioning repeatability of ±0.02 mm, ensuring precise movements every time. For environments requiring cleanliness, the LEFS Series complies with ISO Class 4 standards, making it ideal for cleanroom applications. The LEFS25S2B-450-S5A1H is equipped with a high output motor available in 100, 200, or 400 W options, providing improved high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it perfect for rapid and dynamic operations. The actuator also features a pulse input type and comes with an internal absolute encoder for enhanced accuracy. Compatible with a variety of drivers, including LECSA, LECSB(-T), and more, this actuator offers flexibility and adaptability for various industrial needs. Whether you require high precision or high-speed performance, the SMC LEFS25S2B-450-S5A1H is engineered to deliver exceptional results in any application.
Additional Information
Accuracy:
Basic
Size:
25
Motor Mounting Position:
In-line
Motor Type:
AC Servo Motor(Incremental Encoder), Output 100W, Actuator Size 25 mm
Lead:
Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Cable Type:
Standard Cable
Cable Length:
5 m
Driver Type:
LECSA1, Power Supply Voltage 100V To 120V
I/O Cable Length:
With Connector
