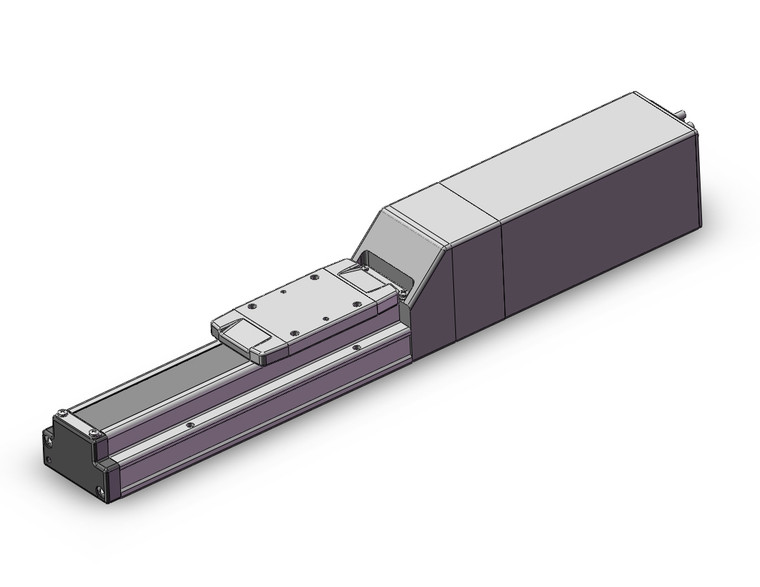

SMC LEFS25T6B-100B-R5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor Corresponding To LECS -T Series Driver
SMC
$2,130.00
The SMC LEFS25T6B-100B-R5 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by an AC servo motor, making it ideal for applications requiring accurate positioning and high-speed transfer. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable and consistent performance.
The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. It also supports various drivers such as LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with certain models no longer in production.
Engineered for clean environments, the LEFS Series complies with ISO Class 4 (ISO14644-1) standards, ensuring minimal contamination. The actuator's high output motor options (100/200/400 W) and enhanced acceleration/deceleration capabilities (up to 20000mm/S²) make it suitable for demanding industrial applications. Additionally, the inclusion of an internal absolute encoder for the LECSB/C/S models enhances its precision, with a high precision type offering positioning repeatability of ±0.01 mm.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Absolute Encoder), Output 100W, Actuator Size 25 mm
- Lead:
- Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
