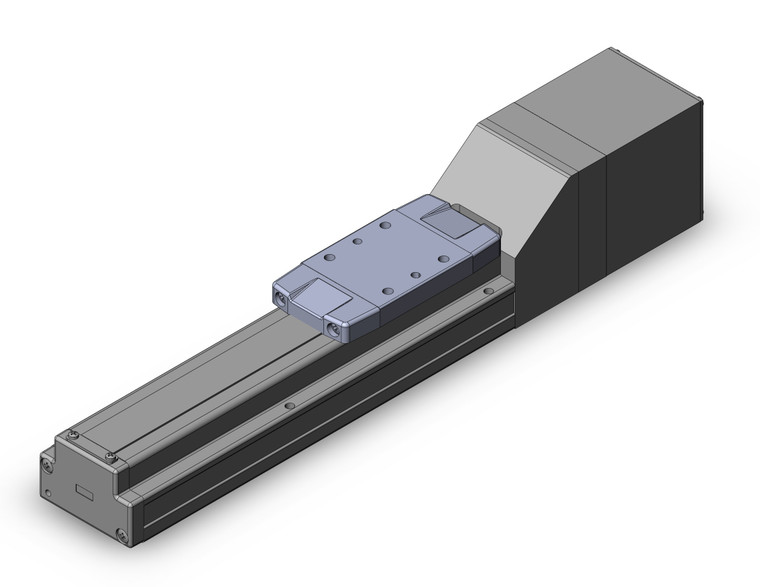

SMC LEFS32A-150-R3 Ball Screw Drive Actuator

SMC LEFS32A-150-R3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS32A-150-R3
Availability:
Contact us to confirm availability and lead times.
$1,115.00
Condition:
New
Current Stock:
Description
The SMC LEFS32A-150-R3 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), making it suitable for a wide range of applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. The actuator complies with ISO Class 4 clean specifications, making it ideal for cleanroom applications (11-LEFS only). The LEFS Series is compatible with a variety of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For those requiring high output, the AC Servo Motor variant offers 100/200/400 W options, enhanced high-speed transfer capabilities, and high acceleration/deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (for the LECSB/C/S) further enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. Whether for industrial automation or cleanroom environments, the SMC LEFS32A-150-R3 provides a robust and precise solution for your actuation needs.
Additional Information
Accuracy:
Basic
Size:
32
Motor Mounting Position:
In-line
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 150 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
3 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
