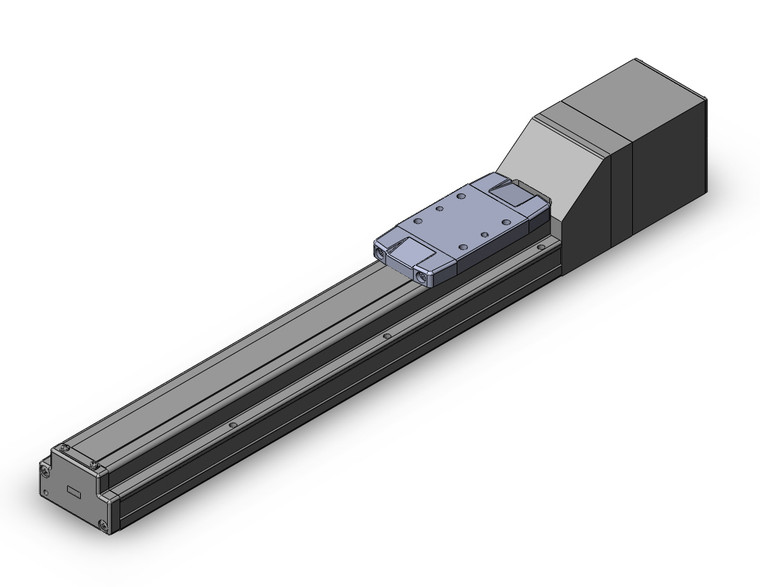

SMC LEFS32A-300-R3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,160.00
The SMC LEFS32A-300-R3 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (servo 24 VDC) or a servo motor (24 VDC), making it suitable for a wide range of applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. The actuator complies with ISO Class 4 clean specifications, making it ideal for cleanroom applications (11-LEFS only). It is compatible with a variety of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also offers an AC servo motor option with high output (100/200/400 W), enhanced high-speed transfer capabilities, and high acceleration/deceleration rates of up to 20000mm/S². The high precision type boasts a positioning repeatability of ±0.01 mm. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with some models also discontinued. This actuator is engineered for high performance and precision, making it a reliable choice for automation and industrial applications.
- Accuracy:
- Basic
- Size:
- 32
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
