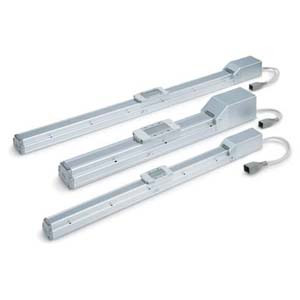

SMC LEFS32B-50-S3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,015.00
The SMC LEFS32B-50-S3 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type ball screw drive step motor operates on a 24 VDC servo motor, ensuring reliable performance for various applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for tasks requiring high accuracy. The actuator meets ISO Class 4 clean specifications, making it suitable for cleanroom environments. It is compatible with a range of controllers, including JXC51, JXC61, and others, providing flexibility in integration. The LEFS Series also features a high output motor with options of 100/200/400 W, enhancing high-speed transfer capabilities and supporting high acceleration/deceleration up to 20000mm/S². For those requiring even greater precision, the high precision type offers positioning repeatability of ±0.01 mm. Additionally, it includes an internal absolute encoder for the LECSB/C/S models, ensuring precise control and feedback. Compatible drivers include LECSA, LECSB(-T), and others, although some models have been discontinued. This actuator is a robust solution for industries demanding high performance and precision.
- Accuracy:
- Basic
- Size:
- 32
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
