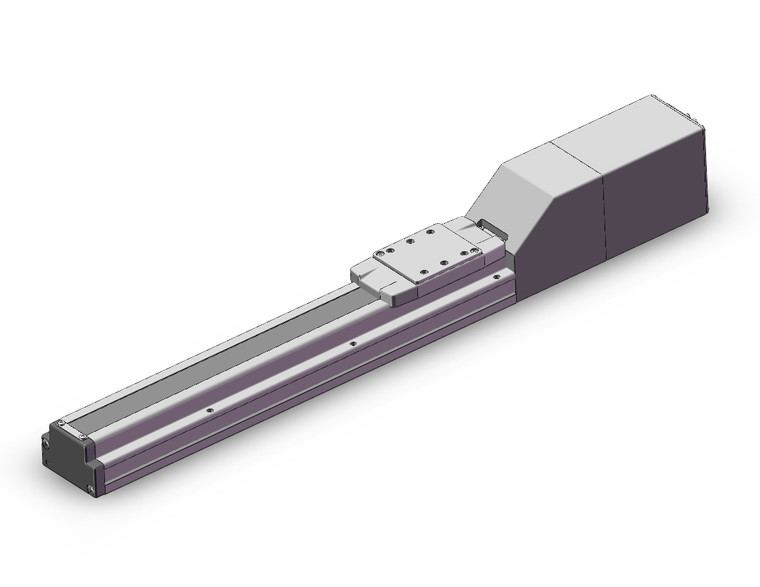

SMC LEFS32S3H-300-R5A1H LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$2,900.00
The SMC LEFS32S3H-300-R5A1H is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling.
The actuator is equipped with a high output motor available in 100/200/400 W options, offering improved high-speed transfer capabilities and high acceleration/deceleration rates of up to 20000 mm/s². It includes a pulse input type and an internal absolute encoder for enhanced precision, particularly in high precision types with positioning repeatability of ±0.01 mm.
Designed to meet clean specifications, the LEFS32S3H-300-R5A1H complies with ISO Class 4 (ISO14644-1) standards, making it suitable for cleanroom environments. It is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, providing flexibility and ease of integration into various systems.
Whether for industrial automation, robotics, or other demanding applications, the SMC LEFS32S3H-300-R5A1H offers robust performance and precision engineering to meet your needs.
- Accuracy:
- Basic
- Size:
- 32
- Motor Mounting Position:
- In-line
- Motor Type:
- AC servo motor(Incremental encoder), Output 200W, Actuator size 32 mm
- Lead:
- Size25: 20 mm, Size32: 24 mm, Size40: 30 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- LECSA1, Power Supply Voltage 100V To 120V
- I/O Cable Length:
- With Connector
