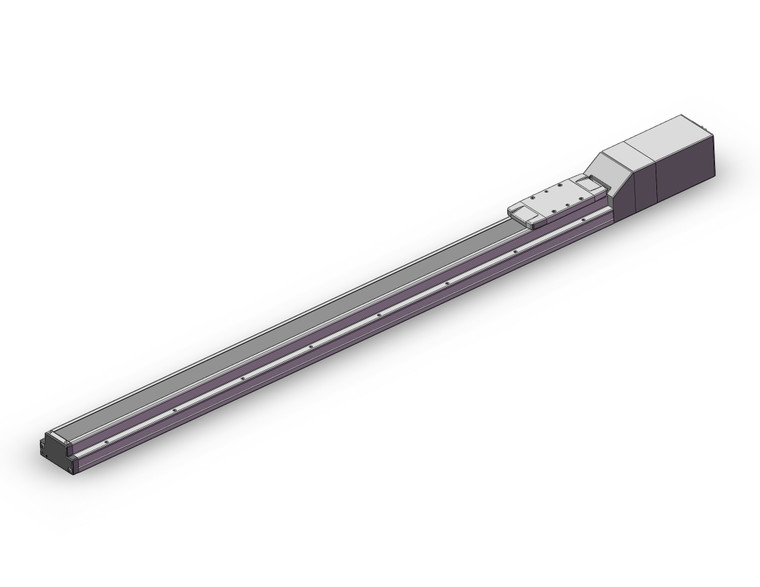

SMC LEFS40S4B-1000-R5A2H Ball Screw Drive Actuator

SMC LEFS40S4B-1000-R5A2H LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
LEFS40S4B-1000-R5A2H
Availability:
Contact us to confirm availability and lead times.
$3,370.00
Condition:
New
Current Stock:
Description
The SMC LEFS40S4B-1000-R5A2H is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring reliable and smooth operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling. The actuator is equipped with a high output motor available in 100/200/400 W options, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it suitable for dynamic and demanding environments. The inclusion of an internal absolute encoder ensures precise positioning, with a high precision type offering repeatability of ±0.01 mm. Compliant with ISO Class 4 (ISO14644-1) clean specifications, the LEFS40S4B-1000-R5A2H is suitable for cleanroom applications, particularly the 11-LEFS model. It is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, providing flexibility and integration into various systems. Note that some compatible drivers and controllers have been discontinued, so it's essential to verify compatibility with current models. Overall, the SMC LEFS40S4B-1000-R5A2H electric actuator is a robust and versatile solution for industries requiring precise motion control and high-speed operations.
Additional Information
Accuracy:
Basic
Size:
40
Motor Mounting Position:
In-line
Motor Type:
AC Servo Motor(Incremental Encoder), Output 400W, Actuator Size 40 mm
Lead:
Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Stroke:
Stroke 1000 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Cable Type:
Robotic Cable(Flexible Cable)
Cable Length:
5 m
Driver Type:
LECSA2, Power Supply Voltage 200V To 230V
I/O Cable Length:
With Connector
