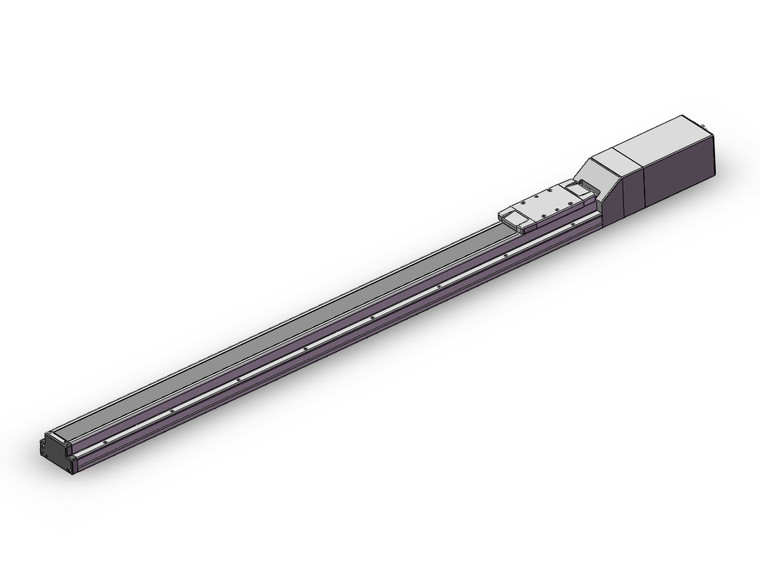

SMC LEFS40S4H-1000B-SAA2 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$3,730.00
The SMC LEFS40S4H-1000B-SAA2 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling.
The actuator is equipped with a high output motor available in 100/200/400 W options, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it suitable for dynamic and demanding environments. The inclusion of an internal absolute encoder ensures precise positioning, with a high precision type offering repeatability of ±0.01 mm.
Compliant with ISO Class 4 (ISO14644-1) clean specifications, the LEFS40S4H-1000B-SAA2 is suitable for cleanroom applications. It is compatible with a range of controllers and drivers, including JXC51, JXC61, and LECSA, among others, providing flexibility and ease of integration into existing systems. Whether for industrial automation or specialized machinery, this actuator delivers exceptional performance and reliability.
- Accuracy:
- Basic
- Size:
- 40
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Incremental Encoder), Output 400W, Actuator Size 40 mm
- Lead:
- Size25: 20 mm, Size32: 24 mm, Size40: 30 mm
- Stroke:
- Stroke 1000 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Standard Cable
- Cable Length:
- 10 m
- Driver Type:
- LECSA2, Power Supply Voltage 200V To 230V
- I/O Cable Length:
- Without Cable
