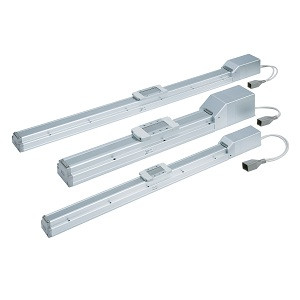

SMC LEFSH16A-100B-S5C918 Ball Screw Drive Actuator High Precision

SMC LEFSH16A-100B-S5C918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEFSH16A-100B-S5C918
Availability:
Contact us to confirm availability and lead times.
$1,605.00
Condition:
New
Current Stock:
Description
The SMC LEFSH16A-100B-S5C918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type ball screw drive step motor operates on a 24 VDC servo, making it ideal for applications requiring accurate positioning and smooth motion control. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. This actuator is compatible with a range of controllers, including the JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. It also supports high output motors of 100/200/400 W, enhancing its high-speed transfer capabilities and allowing for rapid acceleration and deceleration up to 20000mm/S². For applications requiring high precision, the LEFS Series offers a high precision type with positioning repeatability of ±0.01 mm. Additionally, it features a clean specification that complies with ISO Class 4 (ISO14644-1) standards, ensuring suitability for cleanroom environments. Compatible drivers include the LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. The actuator is equipped with an internal absolute encoder, providing enhanced control and feedback for precise operations. Whether for industrial automation or specialized machinery, the SMC LEFSH16A-100B-S5C918 delivers exceptional performance and reliability.
Additional Information
Accuracy:
High Precision Type
Size:
16
Motor Mounting Position:
In-line
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16:10mm,Size25:12mm,Size32:16mm,Size40:20mm
Stroke:
Stroke 100 mm
Motor Option:
With Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type/Length:
Standard Cable 5 m
Communication Protocol:
EtherNet/IP
Number Of Axes/Special Specification:
Number Of Axis:For Single Axis?Specification:Standard
Mounting:
DIN Rail Mounting
Communication Plug Connector I/O Cable:
Without Controller Or Without Plug Connector
