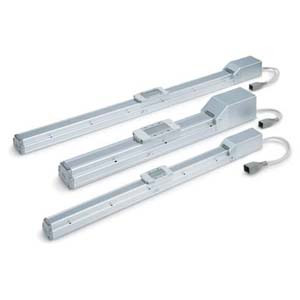

SMC LEFSH16AB-100 Ball Screw Drive Actuator High Precision

SMC LEFSH16AB-100 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFSH16AB-100
Availability:
Contact us to confirm availability and lead times.
$810.00
Condition:
New
Current Stock:
Description
The SMC LEFSH16AB-100 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency in industrial applications. This slider type actuator features a ball screw drive step motor and a servo motor, both operating at 24 VDC, ensuring reliable performance and control. Key features include a maximum workload capacity of 65 kg and exceptional positioning repeatability of ±0.02 mm, making it ideal for tasks requiring high precision. The actuator complies with ISO Class 4 clean specifications (ISO14644-1) for environments demanding stringent cleanliness standards. The LEFS Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For the AC Servo Motor variant, it offers high output options of 100/200/400 W, enhanced high-speed transfer capabilities, and impressive acceleration/deceleration rates of 20000mm/S². It also includes an internal absolute encoder for precise positioning, with a repeatability of ±0.01 mm in high precision types. Compatible drivers for the AC Servo Motor include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with some models also discontinued. This actuator is engineered to meet the demands of modern automation, providing robust performance and adaptability for various industrial needs.
Additional Information
Accuracy:
High Precision Type
Size:
16
Motor Mounting Position:
In-line
Motor Type:
Servo motor (24 VDC)
Lead:
Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Stroke:
Stroke 100 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Without Cable
Actuator Cable Length:
Without Cable
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
