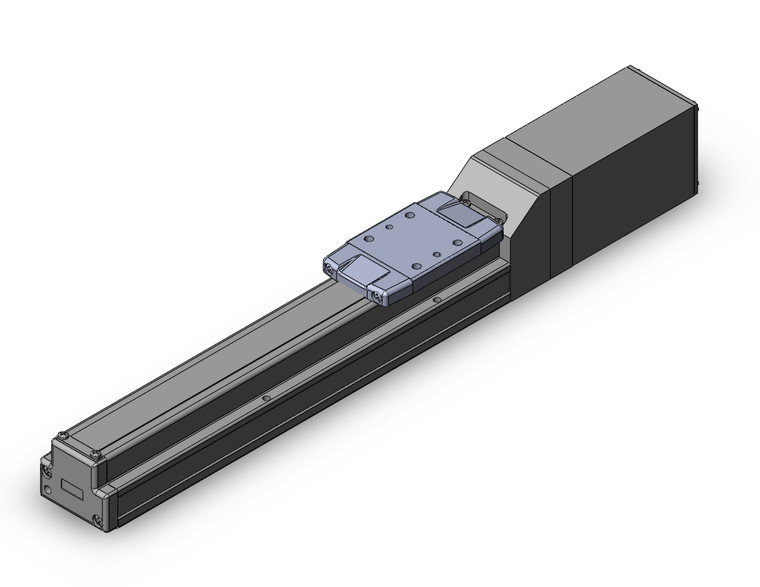

SMC LEFSH16B-150-S1AP1D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

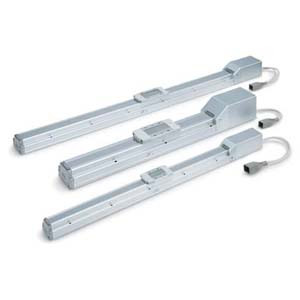

The SMC LEFSH16B-150-S1AP1D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (servo 24 VDC) or a servo motor (24 VDC), making it versatile for various applications. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable operation. Engineered to meet clean specifications, this actuator complies with ISO Class 4 (ISO14644-1) standards, making it suitable for environments requiring stringent cleanliness. The LEFS Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For applications demanding high output, the LEFS AC Servo Motor variant offers motors with 100/200/400 W power options, enhanced high-speed transfer capabilities, and impressive acceleration/deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (available for the LECSB/C/S models) further enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. This actuator is ideal for industries requiring high precision, speed, and cleanliness, making it a reliable choice for advanced automation systems.
