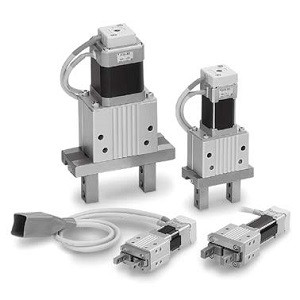

SMC LEHZ40K2-30-R3C917 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,685.00
The SMC LEHZ40K2-30-R3C917 is a cutting-edge electric gripper from the LEHZ Series, designed for precision and efficiency. This 2-finger type step motor gripper operates on a servo 24 VDC, making it perfectly compatible with the JXC Series controllers. It offers easy setting capabilities, allowing you to configure two key parameters: position and force. The controller comes pre-set with actuator data, ensuring seamless integration and operation.
A standout feature of this gripper is its drop prevention function, equipped with a self-lock mechanism across all series, which not only enhances safety but also reduces power consumption. The gripper also includes a gripping check function, providing assurance of secure handling. With the ability to set position, speed, and force across 64 points, it offers unparalleled customization for various applications. Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models, this electric gripper is a versatile and reliable choice for your automation needs.
- Size:
- 40
- Motor size:
- Basic Style
- Lead:
- Basic Type
- Type:
- 2-finger Type
- Stroke:
- Stroke 30 mm
- Finger Option:
- Basic (Tapped In Open/Close Direction)
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type/Length:
- Robotic Cable 3 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
