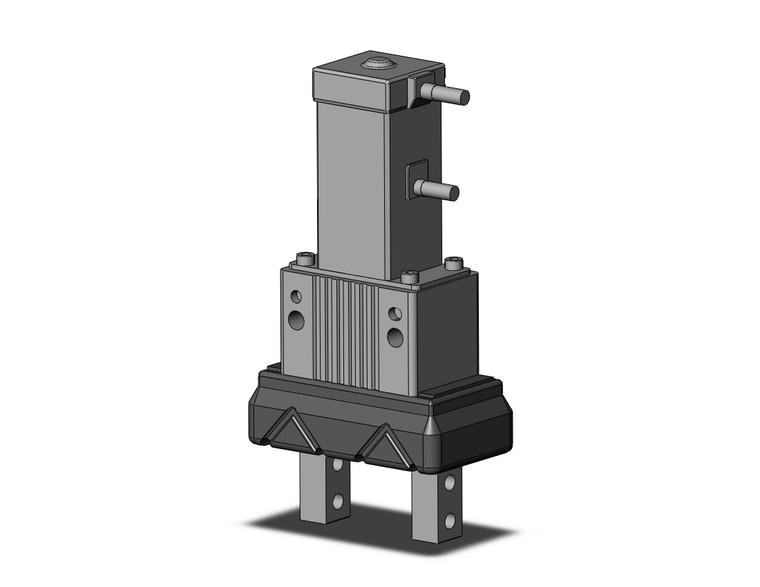

SMC LEHZJ25K2-14-R8C918 2 Finger Gripper, Screw Drive

SMC LEHZJ25K2-14-R8C918 LEHZJ Series Electric Gripper 2-Finger Type With Dust Cover Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEHZJ25K2-14-R8C918
$1,625.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEHZJ Series Electric Gripper 2-Finger Type With Dust Cover Step Motor (Servo 24 VDC) Applicable To The JXC Series

  • Easy setting: Data can be set 2 items, position and force; The controller is already set with the data of the actuator; (The actuator and controller are sold as a package.);
  • Drop prevention function is provided. (Self-lock mechanism is provided; for all series.);
  • Power consumption reduced by self-lock mechanism;
  • Gripping check function is provided;
  • Possible to set position, speed and force. (64 points);
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Dust Cover:
    With Dust Cover
    Body Size:
    25
    Motor size:
    Basic
    Lead:
    Basic Type
    Type:
    2-finger Type
    Stroke:
    Stroke 14 mm
    Dust Cover Type:
    Chloroprene Rubber (CR)
    Motor Cable Entry:
    Basic (Entry On The Left Side)
    Actuator Cable Type/Length:
    Robotic Cable 8 m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Plug Connector
