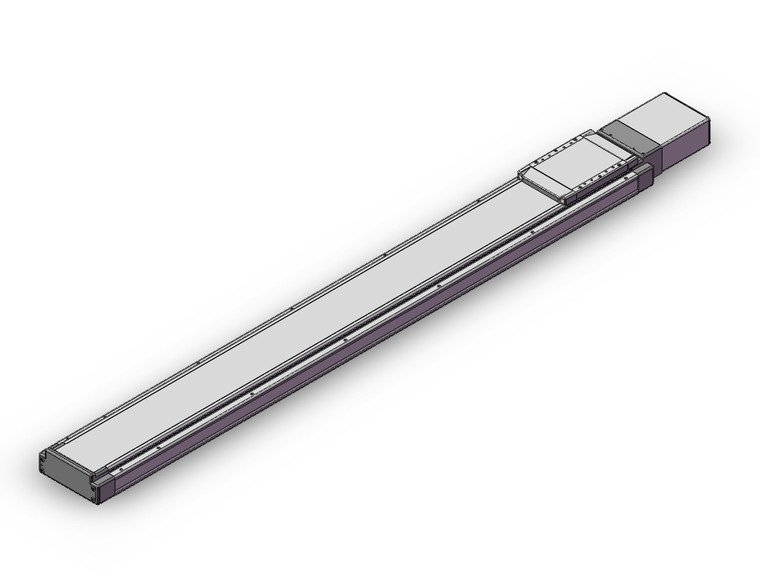

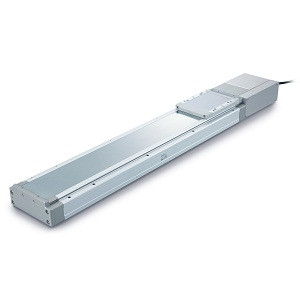

SMC LEJS40S2A-1000-R5A1 LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$4,850.00
The SMC LEJS40S2A-1000-R5A1 is a high-performance electric actuator from the LEJS-AC Series, designed for applications requiring precision and durability. This actuator features a high rigidity slider type ball screw drive powered by an AC servo motor, ensuring reliable and efficient operation. Its low-profile design reduces the height dimension by approximately 36%, enhancing stability with a lower center of gravity. Capable of handling a maximum workload of 85 kg, it offers exceptional positioning repeatability of ±0.02 mm, making it ideal for tasks demanding high accuracy. With a maximum acceleration/deceleration rate of 20000 mm/S2, it delivers swift and smooth motion control. The actuator meets clean specifications, complying with ISO Class 4 (Class 10) standards, ensuring suitability for cleanroom environments (11-LEJS only). It is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models, providing flexibility in integration with existing systems.
- Accuracy:
- Basic
- Size:
- 40
- Motor Type:
- AC servo motor(Incremental encoder), Output 100W, Actuator size 40 mm
- Lead:
- Size40:16mm, Size63:20 mm
- Stroke:
- Stroke 1000 mm
- Motor Option:
- Without Lock
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- LECSA1, Power Supply Voltage 100V To 120V
- I/O Cable Length:
- Without Cable
