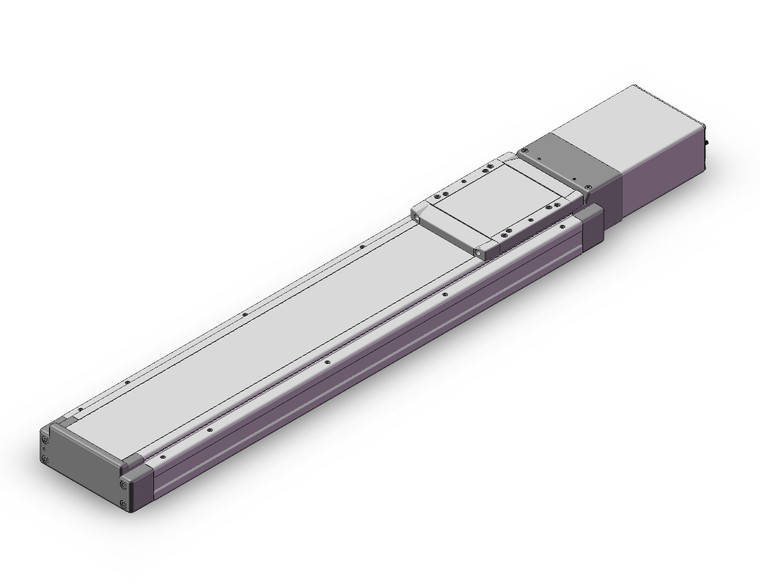

SMC LEJS63S7B-600B-R5 LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$5,230.00
The SMC LEJS63S7B-600B-R5 LEJS-AC Series Electric Actuator is designed for high precision and efficiency, featuring a high rigidity slider type ball screw drive powered by an AC servo motor. This actuator boasts a low-profile design with a reduced height dimension by approximately 36%, enhancing stability with a lower center of gravity. It can handle a maximum workload of 85 kg, ensuring robust performance for demanding applications. With a positioning repeatability of ±0.02 mm, it guarantees precise and reliable operation. The actuator supports a maximum acceleration/deceleration of 20000 mm/S², making it suitable for high-speed applications. Additionally, it meets clean specifications compliant with ISO Class 4 (Class 10) standards, specifically for the 11-LEJS model. Compatible with a range of drivers including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models, this actuator offers versatile integration options for various industrial setups.
- Accuracy:
- Basic
- Size:
- 63
- Motor Type:
- AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:8mm, Size63:10 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- With Lock
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
