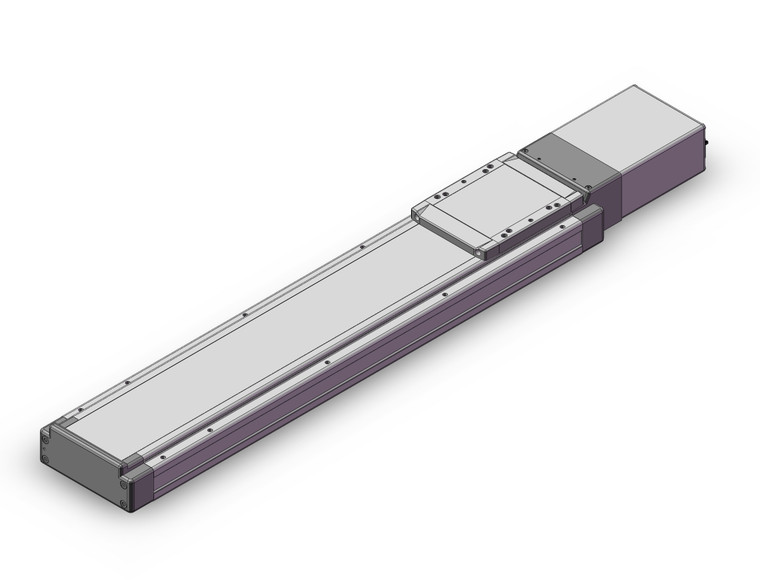

SMC LEJS63S7B-600B-R5B21 LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$6,440.00
The SMC LEJS63S7B-600B-R5B21 is a high-performance electric actuator from the LEJS-AC Series, designed for applications requiring precision and durability. This actuator features a high rigidity slider type ball screw drive powered by an AC servo motor, ensuring reliable and efficient operation. Its low-profile design reduces the height dimension by approximately 36%, enhancing stability with a lower center of gravity. Capable of handling a maximum workload of 85 kg, it offers exceptional positioning repeatability of ±0.02 mm, making it ideal for tasks demanding high accuracy. The actuator supports rapid acceleration and deceleration up to 20000 mm/S2, optimizing productivity in dynamic environments. Additionally, it meets clean specifications compliant with ISO Class 4 (Class 10) standards, ensuring suitability for cleanroom applications. Compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models, this actuator provides versatile integration options for various industrial setups.
- Accuracy:
- Basic
- Size:
- 63
- Motor Type:
- AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:8mm, Size63:10 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- With Lock
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- LECSB2-T, Power Supply Voltage 200V To 240V
- I/O Cable Length:
- 1.5 m
