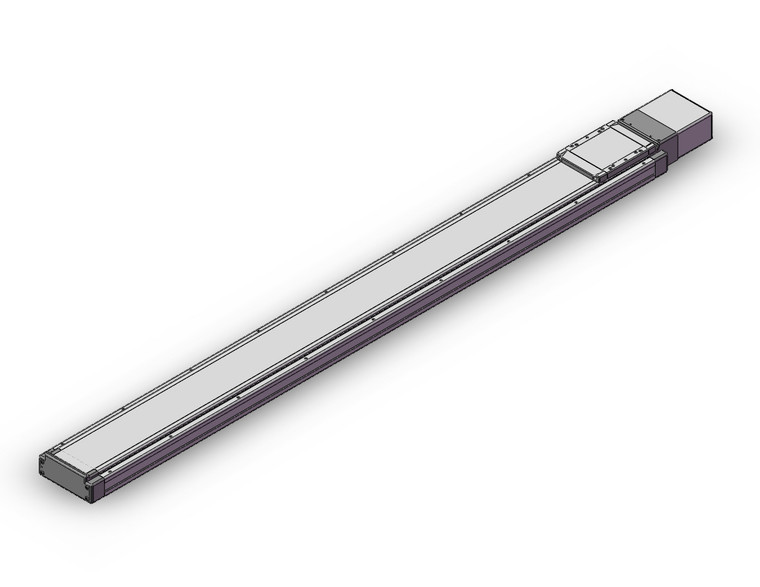

SMC LEJS63T7B-1500 LEJS Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor Corresponding To LECS -T Series Driver
SMC
$5,450.00
The SMC LEJS63T7B-1500 Electric Actuator from the LEJS Series is engineered for high precision and robust performance, making it an ideal choice for demanding industrial applications. This high-rigidity slider type actuator is driven by a ball screw and is compatible with the LECS-T Series Driver, ensuring seamless integration into your existing systems.
Designed with a low-profile and low center of gravity, the actuator's height dimension is reduced by approximately 36%, enhancing stability and reducing space requirements. It supports a maximum workload of 85 kg, making it suitable for heavy-duty tasks. The actuator boasts a remarkable positioning repeatability of ±0.02 mm, ensuring precise and consistent operation.
With a maximum acceleration and deceleration of 20000 mm/S², the LEJS63T7B-1500 is capable of rapid and efficient movement, optimizing cycle times and productivity. For environments requiring stringent cleanliness, the actuator complies with ISO Class 4 (Class 10) standards, specifically in the 11-LEJS variant.
This actuator is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, providing flexibility in system design and future upgrades. Note that some driver models have been discontinued, such as LECSB-S, LECSC-S, and LECSS-S.
Engineered for precision and reliability, the SMC LEJS63T7B-1500 is a superior choice for engineers and manufacturing professionals seeking advanced automation solutions.
- Accuracy:
- Basic
- Size:
- 63
- Motor Type:
- AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:8mm, Size63:10 mm
- Stroke:
- Stroke 1500 mm
- Motor Option:
- Without Lock
- Cable Type:
- Without Cable
- Cable Length:
- Without Cable
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
