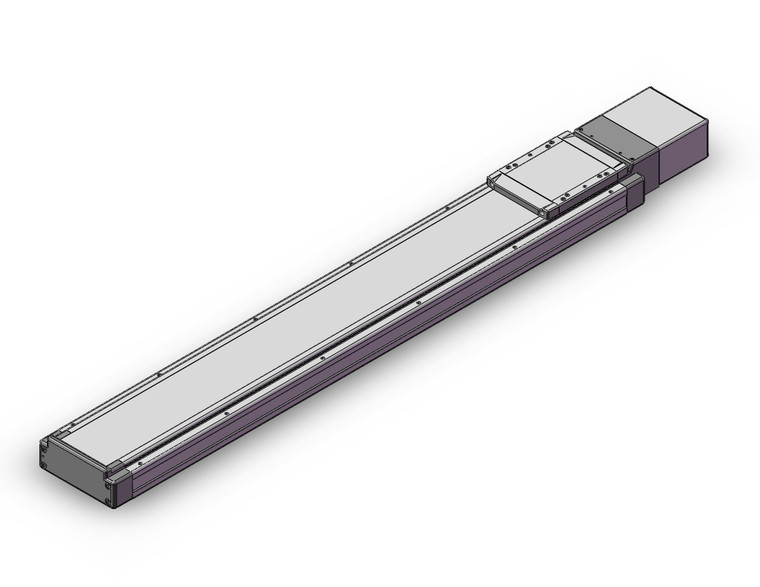

SMC LEJS63T7B-900-S2 LEJS Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor Corresponding To LECS -T Series Driver
SMC
$4,955.00
The SMC LEJS63T7B-900-S2 is a high-performance electric actuator from the LEJS Series, designed for applications requiring precision and durability. This actuator features a high rigidity slider type ball screw drive, powered by an AC servo motor that is compatible with the LECS-T Series Driver. Its low-profile design reduces the height dimension by approximately 36%, enhancing stability with a lower center of gravity. Capable of handling a maximum workload of 85 kg, it offers exceptional positioning repeatability of ±0.02 mm, ensuring precise operations. The actuator supports rapid movements with a maximum acceleration/deceleration of 20000 mm/S². For environments requiring cleanliness, the 11-LEJS model complies with ISO Class 4 (Class 10) standards. It is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models, making it a versatile choice for various industrial applications.
- Accuracy:
- Basic
- Size:
- 63
- Motor Type:
- AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:8mm, Size63:10 mm
- Stroke:
- Stroke 900 mm
- Motor Option:
- Without Lock
- Cable Type:
- Standard Cable
- Cable Length:
- 2 m
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
