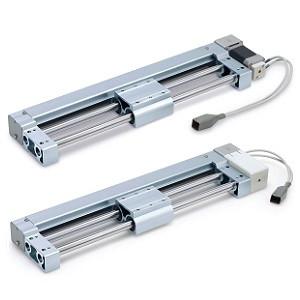

SMC LEL25LT-300CR-S31P3D LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo 24 VDC)

SMC LEL25LT-300CR-S31P3D LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo 24 VDC)

SMC
SKU:
LEL25LT-300CR-S31P3D
$975.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo 24 VDC)

  • Low-profile/Flat Height: 48 mm;
  • Profile reduced by side mounting of motor;?No interference with motor, even with large workpieces;
  • Auto switch mountable (Made to Order);
  • Max. stroke: 1000 mm;
  • Transfer speed: 1000 mm/s;
  • Positioning repeatability: ±0.08 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1
    • Additional Information
    Size:
    25
    Bearing Type:
    Ball Bushing Bearing
    Equivalent Lead:
    48 mm
    Stroke:
    Stroke 300 mm
    Motor Option:
    With Motor Cover
    Switch Rail Option:
    With Magnet/Switch Rail
    Actuator Cable Type:
    Standard Cable
    Actuator Cable Length:
    3 m
    Controller Type:
    LECP1 Program Less Type PNP
    I/O Cable Length, Communication Plug:
    3 m
    Controller Mounting:
    DIN Rail Mounting
