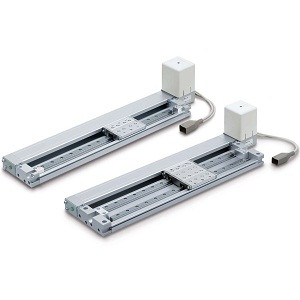

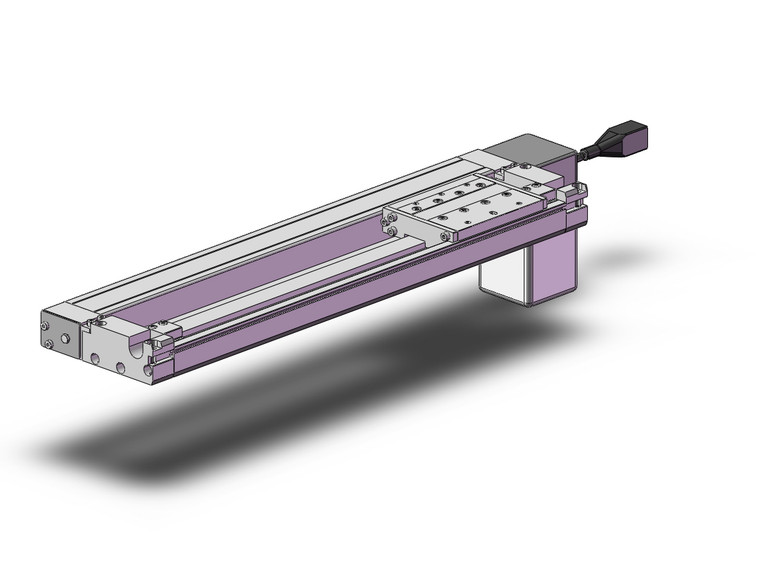

SMC LEMH32UT-300 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC)
SMC
$1,600.00
The SMC LEMH32UT-300 is a versatile electric actuator from the LEMH/HT Series, designed for precision and efficiency. This low-profile slider type linear guide is available in both single and double axis configurations, powered by a step motor with a servo of 24 VDC. Its compact design features a low center of gravity with a table height of just 28 mm, making it ideal for applications where space is limited. The actuator can be paired with various guides, enhancing its adaptability and high maintainability. Users can choose the motor mounting position, whether above or below, or on the right or left, to suit their specific needs. For added functionality, a solid-state auto switch can be installed for limit and intermediate signal confirmation. The actuator offers selectable controllability, allowing for complete control similar to an air cylinder, with the capability of 12-point intermediate stops and easy position setting through value input. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, ensuring seamless integration into various systems.
- Guide:
- 1 Axis
- Size:
- 32
- Motor Mounting Position:
- Bottom Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
