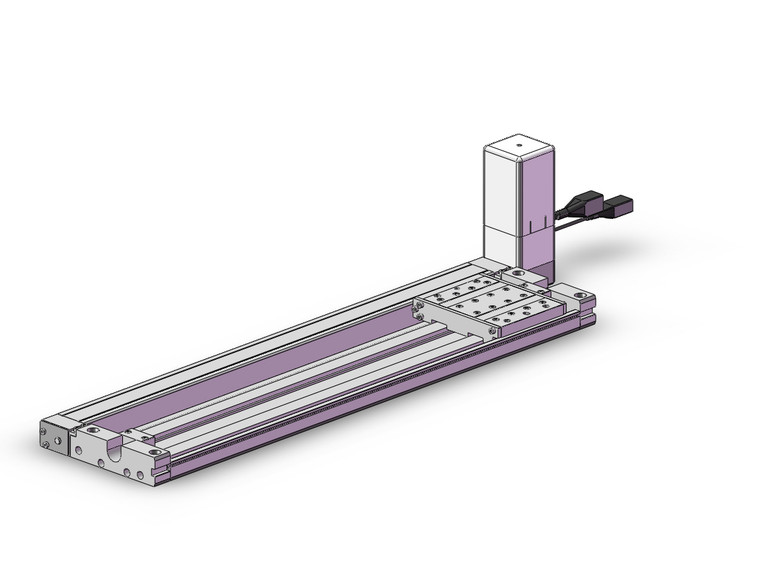

SMC LEMHT32T-500B-S5C918 Linear Guide Double Axis Slider

SMC LEMHT32T-500B-S5C918 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC) Applicable To The JXC series

SMC
SKU:
LEMHT32T-500B-S5C918
$3,185.00
Condition:
New
Current Stock:
Description

LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC) Applicable To The JXC series

  • Low profile, low center of gravity; Table height: 28 mm (in the case of LEMC/H/HT size 25);
  • Can be combined with various guides;
  • High maintainability;
  • Motor mounting position: Above or below, right or left selectable;
  • Solid state auto switch can be mounted for limit confirmation and intermediate signal confirmation;
  • Selectable controllability (Controller); Complete control like an air cylinder (allows for 12 point intermediate stop); Easy position setting by value input;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECP2
    • Additional Information
    Guide:
    2 Axes
    Size:
    32
    Motor Mounting Position:
    Top Mounting
    Equivalent Lead:
    48mm
    Stroke:
    Stroke 500 mm
    Motor Option:
    With Lock
    Actuator Cable Type/Length:
    Standard Cable 5 m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Plug Connector
