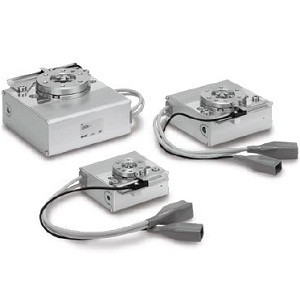

SMC LER10J-1-R5 LER-1 Series Electric Rotary Table Continuous Rotation Specification Step Motor (Servo 24 VDC)

The SMC LER10J-1-R5 LER-1 Series Electric Rotary Table is engineered for precision and efficiency, making it an ideal choice for advanced manufacturing applications. This rotary table features a continuous rotation specification step motor powered by a 24 VDC servo, ensuring reliable performance in demanding environments. Key technical specifications include a versatile rotation angle of 320° (310° for the LER10), 180°, and 90°, allowing for flexible integration into various systems. The low-profile design, with a height of just 42 mm, optimizes space utilization, while the built-in step motor enhances compactness and efficiency. Engineered for high-speed operations, the LER10J-1-R5 achieves a maximum speed of 420°/sec (7.33 rad/sec) and supports rapid acceleration/deceleration up to 3,000°/sec² (52.36 rad/sec²). This ensures shock-less and smooth actuation, critical for precision tasks. The rotary table offers customizable settings with up to 64 programmable points, allowing engineers to fine-tune speed, acceleration, and position to meet specific application requirements. Energy efficiency is enhanced through an automatic 40% power reduction once the table is stationary, contributing to sustainable operations. Ease of use is a priority, with simple data setting requiring only position and speed inputs. The actuator and controller are provided as a pre-configured set, streamlining setup and deployment. Compatible with a range of controllers, including JXC51, JXC61, and others, the LER10J-1-R5 ensures seamless integration into existing systems. Optimize your manufacturing processes with the SMC LER10J-1-R5, designed for precision, efficiency, and adaptability in modern engineering applications.
