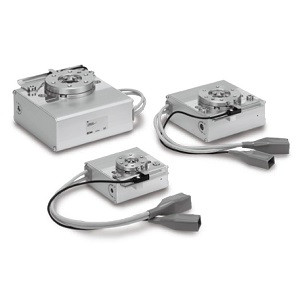

SMC LER30K-1-R5CE17 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

The SMC LER30K-1-R5CE17 LER Series Electric Rotary Table Step Motor is engineered for precision and efficiency, making it an ideal choice for advanced manufacturing applications. This servo-driven rotary table operates on a 24 VDC power supply and is specifically designed to integrate seamlessly with the JXC Series controllers, ensuring optimal performance and control. Key features include a versatile rotation angle selection of 320° (310° for LER10), 180°, and 90°, allowing for tailored motion profiles to suit diverse operational needs. The low-profile design, with a height of just 42 mm for the LER10, facilitates space-saving installations without compromising on functionality. The built-in step motor ensures shock-less and high-speed actuation, achieving a maximum speed of 420°/sec (7.33 rad/sec) and a maximum acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). Engineers will appreciate the ability to set speed, acceleration/deceleration, and position with precision, supporting up to 64 programmable points. This feature, combined with the energy-saving automatic 40% power reduction post-operation, enhances both performance and efficiency. The user-friendly setup requires only two data inputs—position and speed—streamlining the configuration process. The actuator comes pre-configured with the controller, ensuring a plug-and-play experience. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, this rotary table is versatile and adaptable to various system requirements. Note that some controllers, such as LECP6 and LECPMJ, have been discontinued. Optimize your manufacturing processes with the SMC LER30K-1-R5CE17, a robust solution designed for precision, efficiency, and ease of integration.
