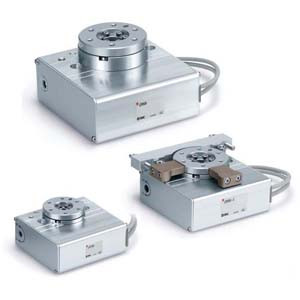

SMC LERH10J-2 LER Series Electric Rotary Table Step Motor (Servo 24 VDC)
SMC
$1,175.00
The SMC LERH10J-2 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) is engineered for precision and efficiency, making it an ideal choice for advanced automation systems. This rotary table offers a versatile rotation angle of 320° (310° for the LER10), 180°, and 90°, providing flexibility for various applications. Its low-profile design, with a height of just 42 mm, ensures seamless integration into compact spaces, while the built-in step motor optimizes space utilization.
Engineered for high-speed and shock-less actuation, the LERH10J-2 achieves a maximum speed of 420°/sec (7.33 rad/sec) and a maximum acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). This performance is complemented by the ability to set speed, acceleration/deceleration, and position across up to 64 points, allowing for precise control and customization.
The energy-efficient design includes an automatic 40% power reduction once the table has stopped, contributing to reduced operational costs. Simplifying setup, the system requires only two data inputsposition and speedthanks to the pre-configured controller data. The actuator and controller are provided as a set, ensuring seamless operation.
Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, the LERH10J-2 is a versatile solution for engineers and manufacturing professionals seeking reliable and efficient automation components.
- Table Accuracy:
- High Precision Type
- Size:
- 10
- Max. Rotating Torque:
- Basic (LER10: 0.22N·m, LER30: 0.8N·m, LER50: 6.6N·m)
- Rotation Angle:
- External stopper: 180
- Motor Cable Entry:
- Basic (Entry On The Right Side)
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
