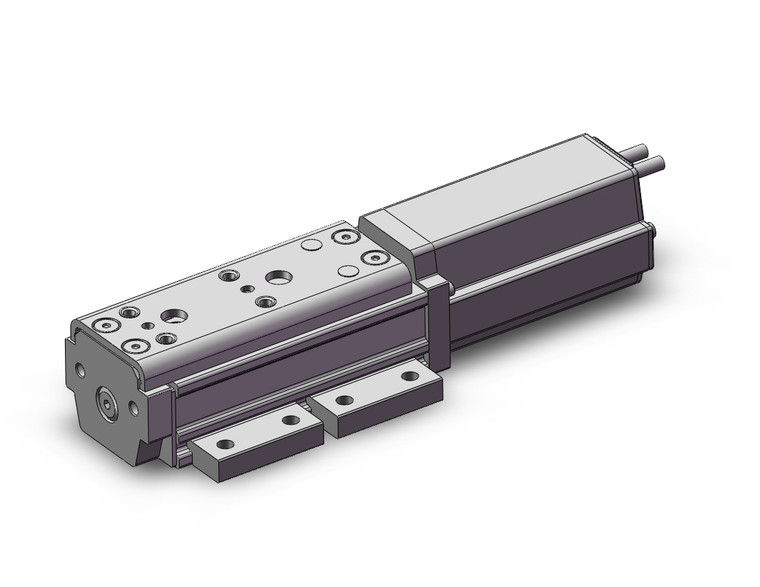

SMC LES16DK-30 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$900.00
The SMC LES16DK-30 is a part of the LES-DC Series Electric Slide Table, designed for compact and efficient performance with a Servo Motor operating at 24 VDC. This model offers a significant reduction in workpiece mounting surface height by up to 12% compared to the LESH, making it an ideal choice for space-constrained applications. It boasts an impressive increase in vertical work load capacity by up to 50%, while maintaining a lightweight design with a weight reduction of up to 29%. The electric slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm.
Engineered to enhance productivity, the LES16DK-30 can reduce cycle times with a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This electric slide table is an excellent choice for applications requiring precision, speed, and compactness.
- Size:
- 16
- Motor Mounting Position:
- Motor Straight,Type D Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 30 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
