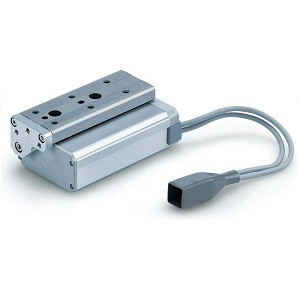

SMC LES25LJ-75BS-R3C917 electric slide table/compact type

SMC LES25LJ-75BS-R3C917 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LES25LJ-75BS-R3C917
$2,105.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

  • Compact: Compared with the LESH, Workpiece mounting surface height:; Reduced by up to 12%;
  • Vertical work load: Increased by up to 50%;
  • Lightweight: Reduced by up to 29%;
  • Max. pushing force: 180 N;
  • Positioning repeatability: ±0.05 mm;
  • Possible to reduce cycle time; Max. acceleration/deceleration: 5,000 mm/S2; Max. speed: 400 mm/s;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued)
    • Additional Information
    Size:
    25
    Motor Mounting Position:
    Symmetrical Type/L Type
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size8:8mm, Size16:10mm, Size25:16mm
    Stroke:
    Stroke 75mm
    Motor Option:
    With Lock
    Body Option:
    Dust Proof Specification
    Mounting Style:
    Without Side Holder
    Actuator Cable Type/Length:
    Robotic Cable 3m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Plug Connector
