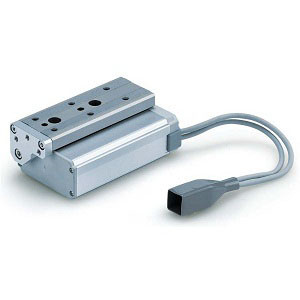

SMC LES25RK-150B LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,470.00
The SMC LES25RK-150B LES-DC Series Electric Slide Table is a compact and efficient solution for your automation needs. This servo motor-driven slide table operates on 24 VDC, offering a significant reduction in workpiece mounting surface height by up to 12% compared to the LESH model. It boasts an impressive increase in vertical work load capacity by up to 50%, while being lightweight with a reduction of up to 29%. With a maximum pushing force of 180 N and positioning repeatability of ±0.05 mm, this slide table ensures precision and reliability. It is designed to optimize cycle times with a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s. Compatible with a range of controllers including JXC51, JXC61, and others, this electric slide table is a versatile choice for various applications. Note that some controllers like LECP6 and LECPMJ have been discontinued.
- Size:
- 25
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- With Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
