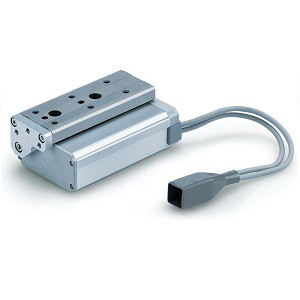

SMC LES8LK-50-R3C917 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,495.00
The SMC LES8LK-50-R3C917 is a part of the LES Series Electric Slide Table, featuring a compact type step motor with a servo of 24 VDC, specifically designed for compatibility with the JXC Series. This innovative slide table offers a range of enhancements over previous models, including a reduced workpiece mounting surface height by up to 12%, allowing for a more compact setup. It also boasts an increased vertical work load capacity by up to 50%, making it ideal for more demanding applications. The lightweight design is achieved with a reduction in weight by up to 29%, without compromising on performance.
With a maximum pushing force of 180 N and positioning repeatability of ±0.05 mm, this electric slide table ensures precision and reliability in every operation. It is engineered to optimize cycle times with a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The LES8LK-50-R3C917 is compatible with a wide range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This product is an excellent choice for those seeking a high-performance, compact, and versatile electric slide table solution.
- Size:
- 8
- Motor Mounting Position:
- Symmetrical Type/L Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4mm, Size16:5mm, Size25:8mm
- Stroke:
- Stroke 50mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Robotic Cable 3m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
