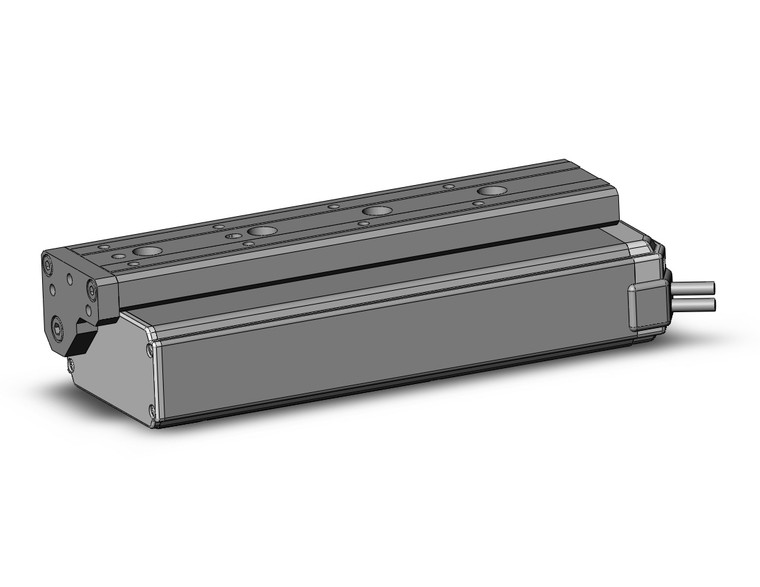

SMC LESH16LK-100-S3 Electric Slide Table/High Rigidity Type

SMC LESH16LK-100-S3 LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)

SMC
SKU:
LESH16LK-100-S3
Availability:
Contact us to confirm availability and lead times.
$1,150.00
Condition:
New
Current Stock:
Description
The SMC LESH16LK-100-S3 is a high-performance electric slide table from the LESH-DC Series, designed for applications requiring high rigidity and precision. This model features a servo motor operating at 24 VDC, ensuring efficient and reliable performance. The integration of the guide rail and table, utilizing a recirculating linear guide, provides exceptional rigidity and precision, making it ideal for demanding industrial environments. Setting up the LESH16LK-100-S3 is straightforward, with data configuration requiring only two parameters: position and speed. The controller comes pre-configured with actuator data, simplifying the installation process. This package includes both the actuator and controller, ensuring seamless integration and operation. The electric slide table is engineered to reduce cycle times, boasting a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. It delivers a maximum pushing force of 180 N and offers positioning repeatability within ±0.05 mm, ensuring consistent and accurate performance. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6 (with some models discontinued), the LESH16LK-100-S3 provides flexibility and adaptability for various applications. Whether for automation, manufacturing, or precision engineering, this electric slide table is a robust and reliable choice.
Additional Information
Size:
16
Motor Mounting Position:
Symmetric Type,L Type
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size8:4 mm,Size16:5 mm,Size25:8 mm
Stroke:
Stroke 100 mm
Motor Option:
Without Option
Body Option:
Without Option
Mounting Style:
Without Side Holder
Actuator Cable Type:
Without Option
Actuator Cable Length:
3 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
