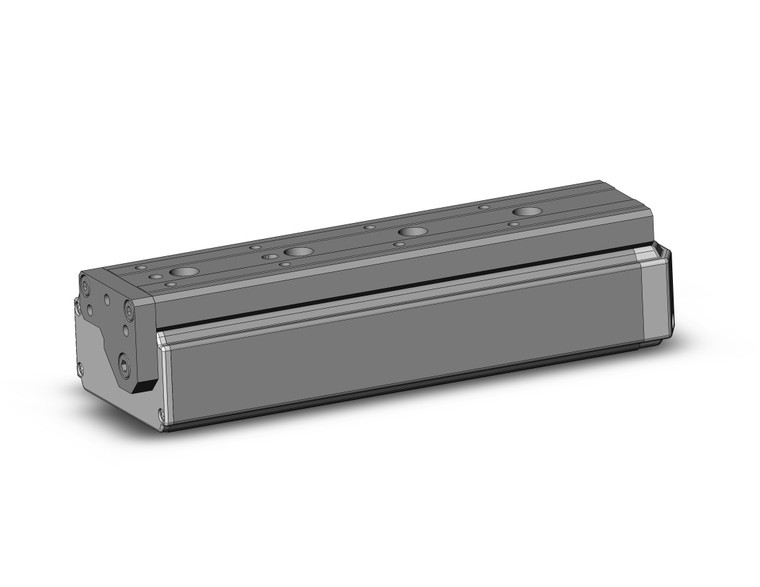

SMC LESH16RK-100BS-R5AN5D LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,825.00
The SMC LESH16RK-100BS-R5AN5D is a high-performance electric slide table from the LESH-DC Series, designed for applications requiring high rigidity and precision. This model features a servo motor operating at 24 VDC, ensuring efficient and reliable performance. The integration of the guide rail and table, utilizing a recirculating linear guide, provides exceptional rigidity and precision, making it ideal for demanding industrial environments.
Setting up the LESH16RK-100BS-R5AN5D is straightforward, with data configuration requiring only two parameters: position and speed. The controller comes pre-configured with actuator data, simplifying the installation process. This product is sold as a package, including both the actuator and controller, ensuring seamless integration and operation.
The electric slide table is engineered to reduce cycle times, boasting a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. It delivers a maximum pushing force of 180 N and offers positioning repeatability within ±0.05 mm, ensuring consistent and accurate performance.
Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6 (with some models discontinued), the LESH16RK-100BS-R5AN5D provides flexibility and adaptability for various applications. Whether for automation, manufacturing, or precision engineering, this electric slide table is a robust and reliable choice.
- Size:
- 16
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock
- Body Option:
- Dust Proof Specification
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 5 m
- Controller Type:
- LECPA Pulse Input Type NPN
- I/O Cable Length, Communication Plug:
- 5 m
- Controller Mounting:
- DIN Rail Mounting
