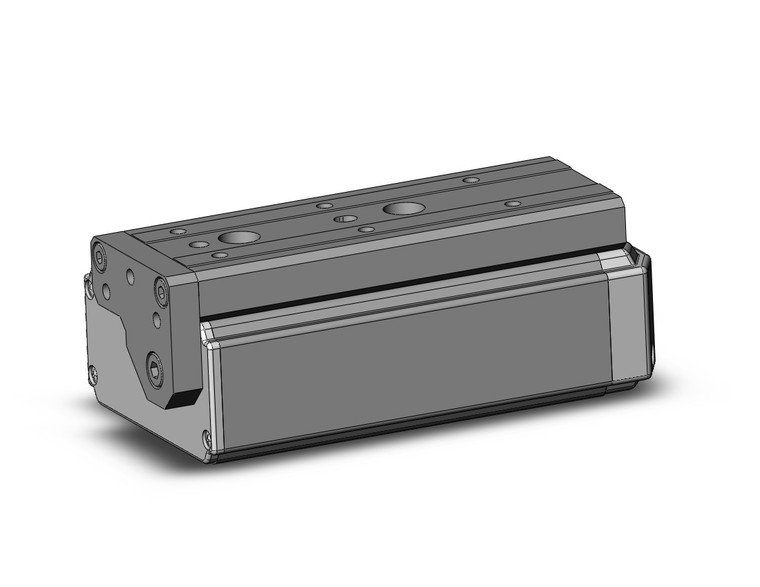

SMC LESH16RK-50S-R3AN3D LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)

The SMC LESH16RK-50S-R3AN3D is a part of the LESH-DC Series Electric Slide Table, designed for high rigidity and precision. This model features a Servo Motor operating at 24 VDC, ensuring efficient and reliable performance. With its easy setting capabilities, users can configure the device with just two parameters: position and speed. The controller comes pre-set with actuator data, simplifying the setup process as both the actuator and controller are sold as a package. The integration of the guide rail and table utilizes a recirculating linear guide, providing enhanced rigidity and precision. This design choice contributes to reduced cycle times, with a maximum acceleration and deceleration rate of 5,000 mm/S² and a top speed of 400 mm/s. The electric slide table also boasts a maximum pushing force of 180 N and offers positioning repeatability within ±0.05 mm, making it ideal for applications requiring high accuracy. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, this product ensures versatility and adaptability in various industrial settings. Note that some controllers, such as LECP6 and LECPMJ, have been discontinued.
