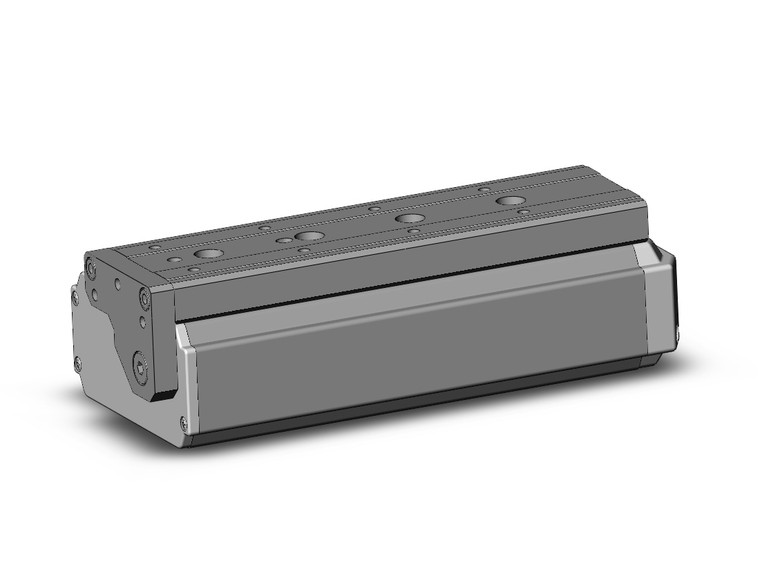

SMC LESH25RAK-100-R36P1D LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,930.00
The SMC LESH25RAK-100-R36P1D is a high-performance electric slide table from the LESH-DC Series, designed for applications requiring high rigidity and precision. This model features a servo motor operating at 24 VDC, ensuring efficient and reliable performance.
Key features include an easy setting process, where data can be configured with just two parameters: position and speed. The actuator comes pre-configured with the controller, simplifying setup and operation. The integration of a recirculating linear guide with the table enhances rigidity and precision, making it ideal for demanding industrial applications.
This electric slide table is engineered to reduce cycle times, boasting a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. It delivers a maximum pushing force of 180 N and offers excellent positioning repeatability of ±0.05 mm, ensuring consistent and accurate performance.
The LESH25RAK-100-R36P1D is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This compatibility provides flexibility and adaptability for various automation systems.
- Size:
- 25
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- Without Option
- Body Option:
- Without Option
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 3 m
- Controller Type:
- LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- DIN Rail Mounting
