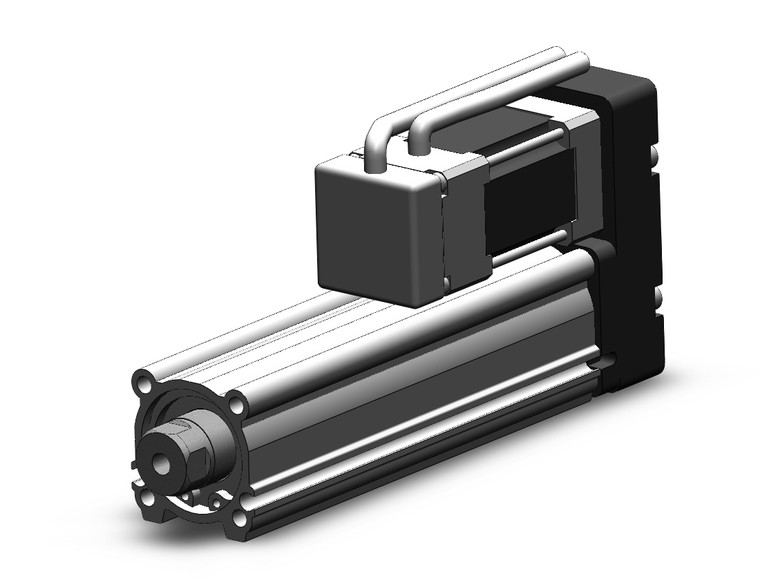

SMC LEY16B-50-S3AP1 LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,020.00
The SMC LEY16B-50-S3AP1 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, allowing the actuator to hold its position against a workpiece. With a positioning repeatability of ±0.02 mm or less, it ensures high precision in operations. The actuator is built to withstand challenging environments with its IP65 dust and drip-proof specification. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, and others, although some models have been discontinued. Additionally, the LEY Series AC Servo Motor offers high output options of 100/200/400 W, improved high-speed transfer ability, and high acceleration compatibility up to 5,000 mm/S². It includes a pulse input type and an internal absolute encoder, maintaining a positioning repeatability of ±0.02 mm or less. The actuator is also compatible with various drivers, such as LECSA, LECSB(-T), and others, with some models discontinued.
- Size:
- 16
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- Without Lock
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- LECPA Pulse Input Type PNP
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
