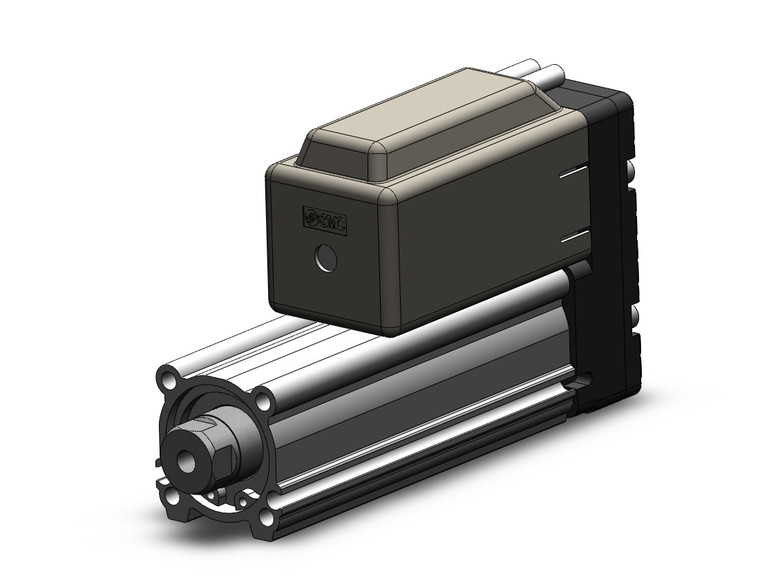

SMC LEY16C-30C LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$672.00
The SMC LEY16C-30C is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch installation and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. It boasts a positioning repeatability of ±0.02 mm or less and is built to withstand harsh environments with its IP65 dust and drip-proof specification. Compatible with a range of controllers, including JXC51, JXC61, and others, the LEY16C-30C ensures seamless integration into various systems. Additionally, the series offers high output motors (100/200/400 W) for improved high-speed transfer and high acceleration capabilities up to 5,000 mm/S². The actuator includes an internal absolute encoder for precise operations and is compatible with several drivers, ensuring flexibility and adaptability in diverse applications.
- Size:
- 16
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 2.5 mm, Size25: 3 mm, Size32: 4 mm
- Stroke:
- Stroke 30 mm
- Motor Option:
- With Motor Cover
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
