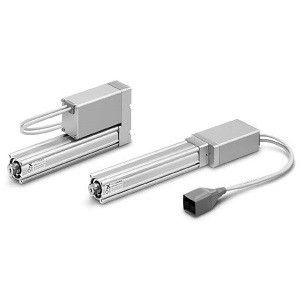

SMC LEY16EA-150W-R5C917 LEY16E Series Electric Actuator Battery-less Absolute Encoder Type Rod Type Step Motor 24 VDC

SMC LEY16EA-150W-R5C917 LEY16E Series Electric Actuator Battery-less Absolute Encoder Type Rod Type Step Motor 24 VDC

SMC
SKU:
LEY16EA-150W-R5C917
$0.00
Condition:
New
Current Stock:
Description

LEY16E Series Electric Actuator Battery-less Absolute Encoder Type Rod Type Step Motor 24 VDC

  • Restart from the last stop position is possible after recovery of the power supply;
  • Easy operation restart after recovery of the power supply;
  • Does not require the use of batteries. Reduced maintenance; Batteries are not required to store the position information. Therefore, there is no need to store spare batteries or to recycle and replace dead batteries;
  • Size 16 has been added. [New]; Slider Type LEF, Rod Type LEY(G)
    • Additional Information
    Size:
    16
    Motor Mounting Position/Motor Cover Direction:
    Motor Mounting Position: Top Mounting
    Motor Type:
    Battery-less Absolute(Step Motor 24 VDC)
    Lead:
    10 mm
    Stroke:
    Stroke 150 mm
    Motor Option:
    With Lock/Motor Cover
    Rod End Thread:
    Rod End Female Thread
    Mounting Style:
    Ends Tapped/Body Bottom Tapped
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol Input/Output:
    EtherNet/IP
    For Single Axis:
    For Single Axis
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
