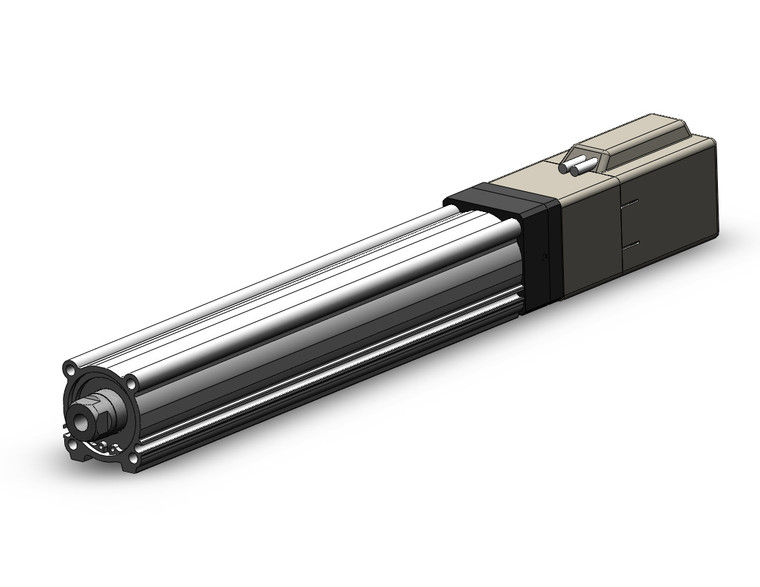

SMC LEY25DC-150W-S3 LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,005.00
The SMC LEY25DC-150W-S3 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types, allowing for easy integration into various applications. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can select between positioning or pushing control, making it possible to hold the actuator with the rod pushing against a workpiece. With a positioning repeatability of ±0.02 mm or less, it ensures high precision in operations. The actuator is built to withstand challenging environments with its IP65 dust and drip-proof specification. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, and others, although some models have been discontinued. Additionally, the LEY Series AC Servo Motor offers high output options (100/200/400 W) and improved high-speed transfer ability, with high acceleration compatibility up to 5,000 mm/S2. It includes a pulse input type and an internal absolute encoder for enhanced performance. The actuator is also compatible with various drivers, such as LECSA, LECSB(-T), and LECSS, among others, with some models no longer in production.
- Size:
- 25
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 2.5 mm, Size25: 3 mm, Size32: 4 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- With Lock And Cover
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
