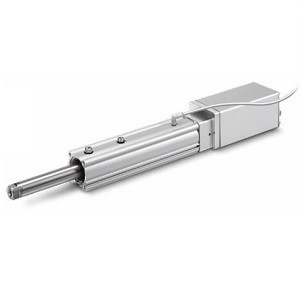

SMC LEY25DEB-150BM-MB-X8 LEY-X8 Series Electric Actuator/Rod Type Battery-less Absolute (Step Motor 24 VDC) Dust-tight/Water-jet-proof Battery-less Absolute (IP65 Equivalent/IP67 Equivalent) Applicable To The JXC Series Controller

SMC LEY25DEB-150BM-MB-X8 LEY-X8 Series Electric Actuator/Rod Type Battery-less Absolute (Step Motor 24 VDC) Dust-tight/Water-jet-proof Battery-less Absolute (IP65 Equivalent/IP67 Equivalent) Applicable To The JXC Series Controller

SMC
SKU:
LEY25DEB-150BM-MB-X8
$0.00
Condition:
New
Current Stock:
Description

LEY-X8 Series Electric Actuator/Rod Type Battery-less Absolute (Step Motor 24 VDC) Dust-tight/Water-jet-proof Battery-less Absolute (IP65 Equivalent/IP67 Equivalent) Applicable To The JXC Series Controller

  • Enclosure: IP65* equivalent/IP67 equivalent; *Testing of IP65 has also been carried out;
  • Battery-less absolute encoder compatible
    • Additional Information
    Size:
    25
    Motor Mounting Position:
    In-line
    Motor Type:
    Battery-less Absolute(Step Motor 24 VDC)
    Lead:
    LEY25:6 mm,LEY32/40:8 mm
    Stroke:
    Stroke 150 mm
    Motor Option:
    With Lock
    Rod End Thread:
    Rod End Male Thread(1 Rod End Nut Is Included)
    Mounting:
    Ends Tapped/Body Bottom Tapped
    Actuator Cable Type/Length:
    Robotic Cable 15 m
    Communication Protocol:
    Without Controller
    Number Of Axes/Special Specification:
    Without Controller
    Mounting:
    Without Controller
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
    Made To Order:
    Dust-tight/Immersion-proof
