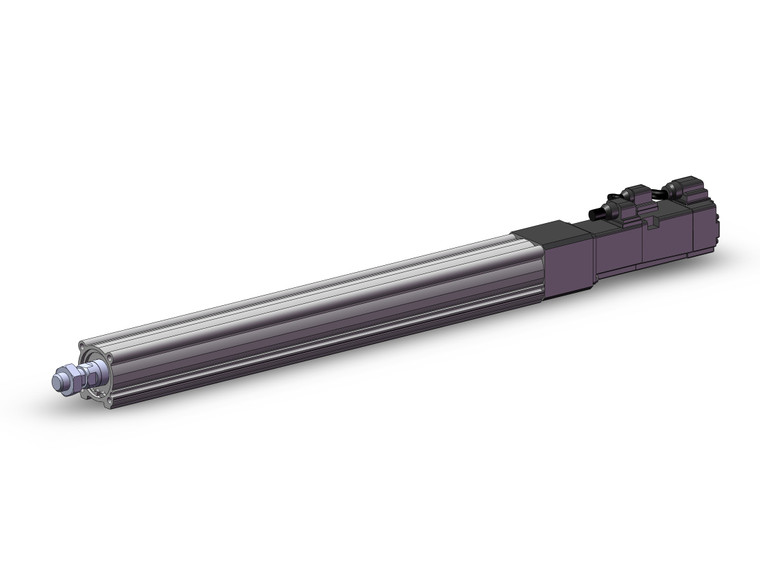

SMC LEY25DS6C-300BM-S5B1H LEY Series Electric Actuator/Rod Type AC Servo Motor(100/200W)
SMC
$2,850.00
The SMC LEY25DS6C-300BM-S5B1H is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type AC servo motor is available in 100/200W, offering a long stroke capability of up to 500 mm. It features direct mounting in three directions and bracket mounting in three types, providing flexibility in installation. The actuator supports auto switch mounting and offers speed control and positioning with a maximum of 64 points. Users can select either positioning or pushing control, with the ability to hold the actuator with the rod pushing against a workpiece. It boasts a positioning repeatability of ±0.02 mm or less and is built with a dust and drip-proof (IP65) specification for enhanced durability. Compatible with a range of controllers, including JXC51, JXC61, and others, this actuator is equipped with a high output motor (100/200/400 W) for improved high-speed transfer ability and high acceleration compatibility (5,000 mm/S²). It includes a pulse input type and an internal absolute encoder, ensuring precise and reliable performance. The SMC LEY25DS6C-300BM-S5B1H is an ideal choice for applications requiring high precision and robust performance.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- Straight Type
- Motor Type:
- AC Servo Motor(Absolute Encoder), Output 100W, Actuator Size 25 mm
- Lead:
- Size25:3 mm, Size32&Motor Mounting Position In-line:4 mm, Size32&Motor Mounting Position Parallel:5 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- With Lock
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Ends Tapped/Body Bottom Tapped
- Cable Type:
- Standard Cable
- Cable Length:
- 5 m
- Driver Type:
- LECSB1, Power Supply Voltage 100V To 120V(Manufacture discontinued)
- I/O Cable Length:
- With Connector
