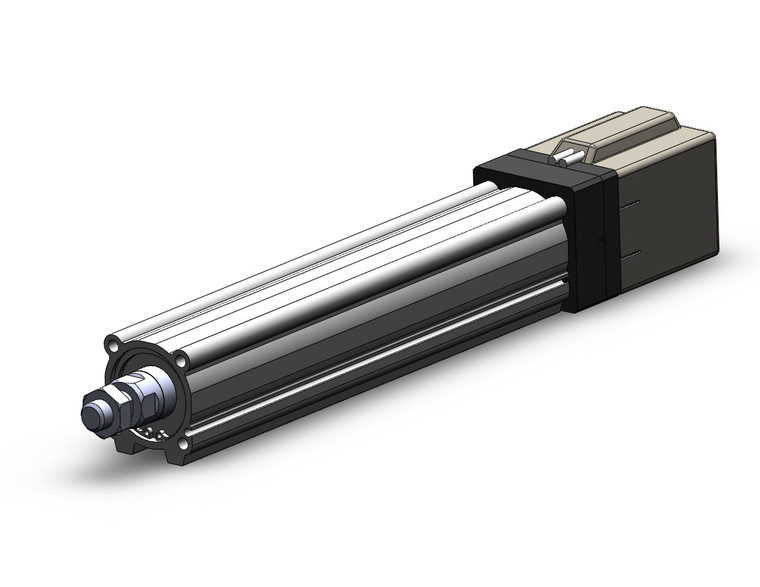

SMC LEY32DB-150CM LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$840.00
The SMC LEY32DB-150CM is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features direct mounting in three directions and bracket mounting in three types, providing flexibility in installation. The actuator supports auto switch mounting and offers speed control and positioning with a maximum of 64 points. Users can select either positioning or pushing control, with the ability to hold the actuator with the rod pushing against a workpiece. It boasts a positioning repeatability of ±0.02 mm or less and is built with a dust and drip-proof IP65 specification for durability in various environments.
The LEY Series also includes an AC Servo Motor option, delivering high output with 100/200/400 W power and improved high-speed transfer ability. It is compatible with high acceleration up to 5,000 mm/S² and features a pulse input type with an internal absolute encoder. The actuator is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, ensuring seamless integration into existing systems. Whether for industrial automation or precision engineering, the SMC LEY32DB-150CM offers reliable performance and adaptability.
- Size:
- 32
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- With Motor Cover
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
