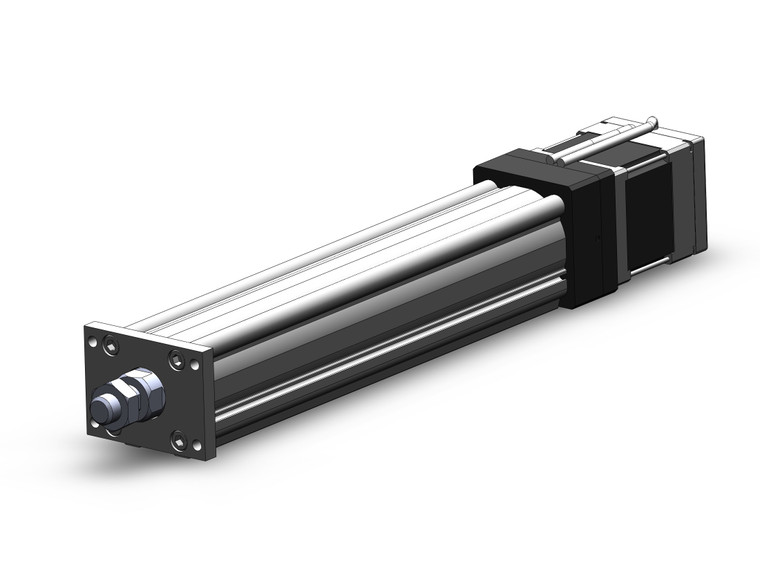

SMC LEY32DB-150MF-S3 LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$960.00
The SMC LEY32DB-150MF-S3 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor, powered by a 24 VDC servo motor, offers a long stroke capability of up to 500 mm, making it ideal for a variety of applications. It features direct mounting in three directions and bracket mounting in three types, providing flexibility in installation. The actuator supports auto switch mounting and allows for speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. With a positioning repeatability of ±0.02 mm or less and a dust/drip proof IP65 specification, this actuator is built for reliability and durability. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, and others, although some models have been discontinued. The LEY Series also includes an AC Servo Motor option, offering high output (100/200/400 W), improved high-speed transfer ability, and high acceleration compatibility (5,000 mm/S2). It features a pulse input type and an internal absolute encoder, ensuring precise and repeatable positioning. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), and others, with some models also discontinued. This actuator is an excellent choice for applications requiring high precision and adaptability.
- Size:
- 32
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- Without Lock
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Rod Side Flange Style
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
