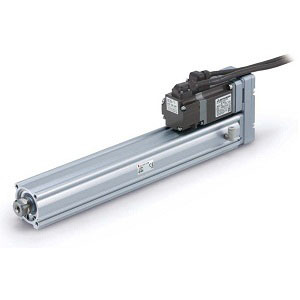

SMC LEY32S3B-400B-R5-X5 LEY-X5-AC Series Electric Actuator/Rod Type AC Servo Motor Dust/Drip proof specification (IP65)

SMC LEY32S3B-400B-R5-X5 LEY-X5-AC Series Electric Actuator/Rod Type AC Servo Motor Dust/Drip proof specification (IP65)

SMC
SKU:
LEY32S3B-400B-R5-X5
Availability:
Contact us to confirm availability and lead times.
$2,155.00
Condition:
New
Current Stock:
Description

LEY-X5-AC Series Electric Actuator/Rod Type AC Servo Motor Dust/Drip proof specification (IP65)

  • Enclosure: IP65 equivalent;
  • Max. stroke: 500 mm
    • Additional Information
    Accuracy:
    Basic
    Size:
    32
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    AC servo motor(Incremental encoder), Output 200W, Actuator size 32 mm
    Lead:
    Size25:6 mm, Size32&Motor Mounting Position In-line:8 mm, Size32&Motor Mounting Position Parallel:10 mm
    Stroke:
    Stroke 400 mm
    Motor Option:
    With Lock
    Rod End Thread:
    Rod End Female Thread
    Mounting Style:
    Both Ends Tapped Style(Standard)
    Cable Type:
    Robotic Cable(Flexible Cable)
    Cable Length:
    5 m
    Driver Type:
    Without Driver
    I/O Cable Length:
    Without Cable
