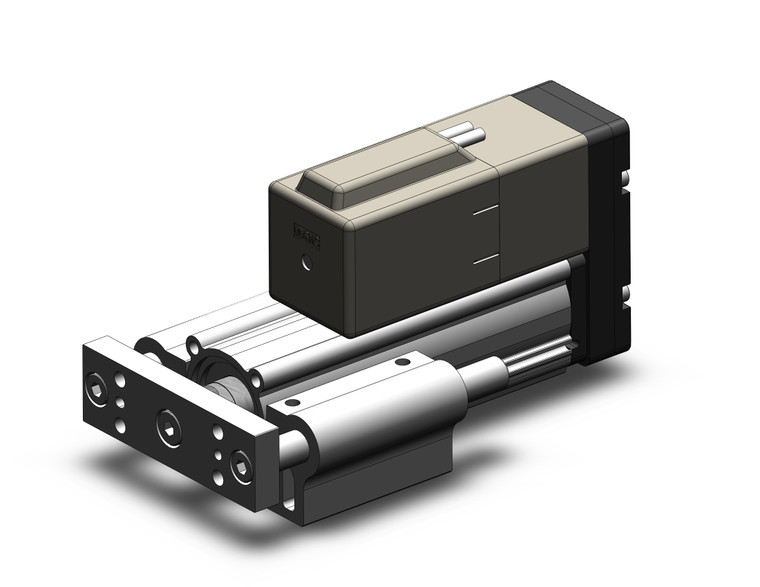

SMC LEYG25MAC-50WF LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG25MAC-50WF is a cutting-edge electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, specifically in size 25 with a 100 stroke. This actuator is versatile, compatible with both sliding and ball bushing bearings, and can handle moment loads and stoppers when using sliding bearings. It features advanced speed control and positioning capabilities, supporting up to 64 points for precise operations. Users can select between positioning and pushing control, with the ability to hold the actuator in place when the rod is pushed against a workpiece. The positioning repeatability is impressively accurate at ±0.02 mm or less. The LEYG Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The AC servo motor within the series delivers high output, available in 100/200 W, and is engineered for improved high-speed transfer capabilities. It supports high acceleration and deceleration, up to 5,000mm/S2, and features a pulse input type with an internal absolute encoder for enhanced performance. Compatible drivers for this actuator include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. The SMC LEYG25MAC-50WF is an ideal choice for applications requiring precise control and robust performance in a compact form factor.
