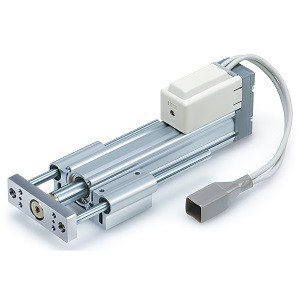

SMC LEYG32MEB-300WF-RBC918 LEYG-E Series Electric Actuator/Guide Rod Type Battery-less Absolute Encoder

SMC LEYG32MEB-300WF-RBC918 LEYG-E Series Electric Actuator/Guide Rod Type Battery-less Absolute Encoder

SMC
SKU:
LEYG32MEB-300WF-RBC918
$0.00
Condition:
New
Current Stock:
Description

LEYG-E Series Electric Actuator/Guide Rod Type Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Compact integration of guide rods; Achieves lateral load resistance and high non-rotating accuracy;
  • Lateral end load: 5 times more (Compared with a rod type, size 25, 100 stroke);
  • Compatible with sliding bearings and ball bushing bearings; Compatible with moment load and stopper (sliding bearings);
  • Either positioning or pushing control can be selected.; It is possible to hold the actuator with the rod pushing on a workpiece, etc.;
  • Positioning repeatability: ±0.02 mm or less ;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
    • Additional Information
    Size:
    32
    Bearing Type:
    Sliding Bearing
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    Battery-less Absolute Encoder Type(Step Motor 24 VDC)
    Lead:
    LEYG25:6 mm, LEYG32/40:8 mm
    Stroke:
    Stroke 300 mm
    Motor Option:
    With Lock/Motor Cover
    Guide Option:
    With Grease Retaining Function
    Actuator Cable Type/Length:
    Robotic Cable 15 m
    Communication Protocol Input/Output:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
