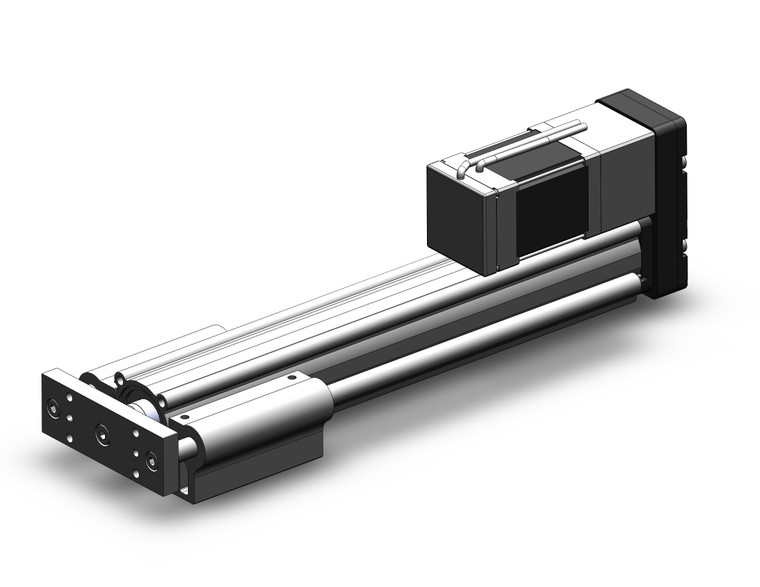

SMC LEYG40LB-250B-R5 LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG40LB-250B-R5 is a cutting-edge electric actuator from the LEYG Series, designed to deliver precision and efficiency in motion control applications. This actuator features a guide rod type step motor with a servo motor operating at 24 VDC, ensuring reliable performance and high non-rotating accuracy. Key features include a compact integration of guide rods, providing exceptional lateral load resistance, up to five times more than traditional rod types of similar size and stroke. The actuator is compatible with both sliding and ball bushing bearings, making it versatile for various applications. It supports speed control and positioning with a maximum of 64 points, allowing for precise control over movement. The LEYG40LB-250B-R5 also offers positioning and pushing control, enabling the actuator to hold its position when pushing against a workpiece. With a positioning repeatability of ±0.02 mm or less, it ensures consistent and accurate performance. This actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, and others, providing flexibility in system integration. Additionally, the series includes a high output AC servo motor option, offering improved high-speed transfer capabilities and high acceleration/deceleration compatibility at 5,000mm/S2. Equipped with an internal absolute encoder and compatible with various drivers, the SMC LEYG40LB-250B-R5 is an ideal choice for applications requiring precise motion control and robust performance.
