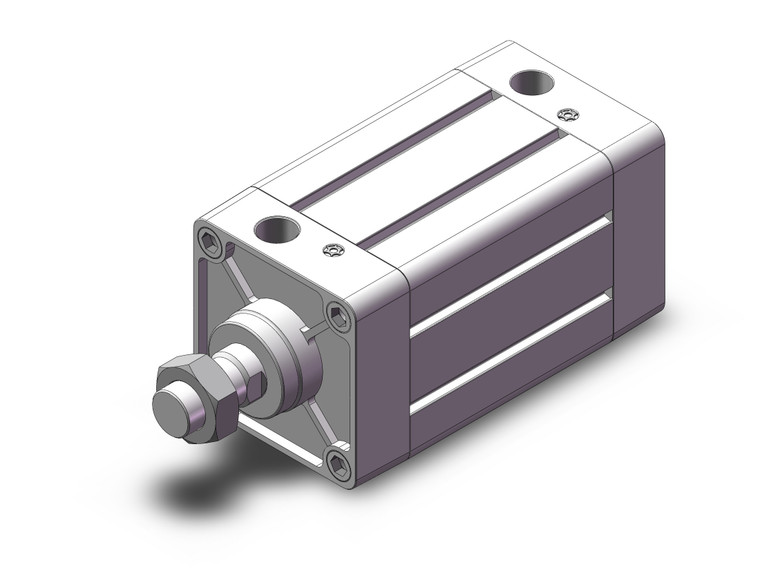

SMC MDB1B100-100Z MB1-Z Series Square Tube Type Air Cylinder
SMC
$255.30
The SMC MDB1B100-100Z MB1-Z Series Square Tube Type Air Cylinder is engineered for efficiency and versatility. This air cylinder is 10% lighter for strokes between 50-100, thanks to the innovative redesign of the rod and head covers. It offers the flexibility to mount small auto switches on four different surfaces, enhancing its adaptability in various applications. For added convenience, an optional fastener is available for the auto switch mounting groove, providing effective dust prevention. The MDB1 series, including models MDB1, MDB1W, and MDB1K, comes equipped with an auto switch, ensuring seamless integration into your pneumatic systems.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Suffix For Cylinder:
- None Rod Boot,Air Cushion
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- No Bracket
- Accessories2:
- No Bracket
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
