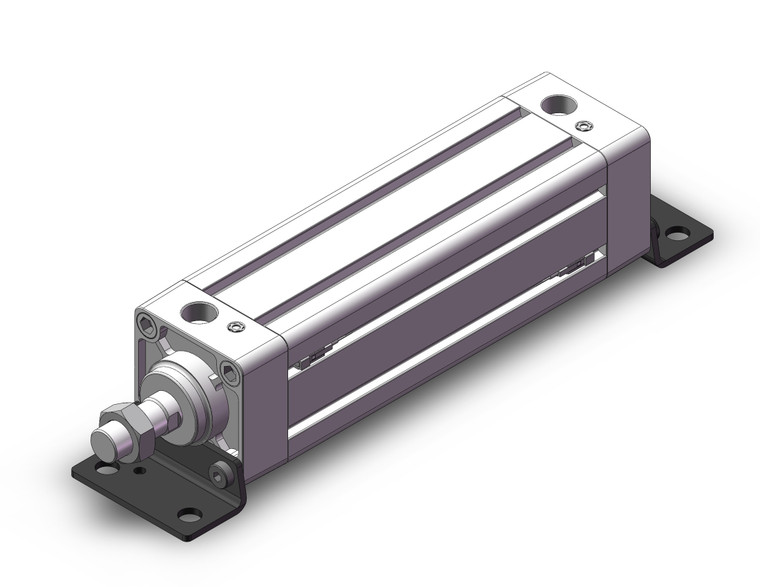

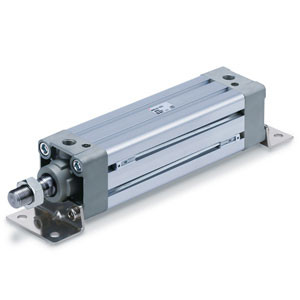

SMC MDB1L63-175NZ-M9NZ MB1-Z Series Square Tube Type Air Cylinder
SMC
$308.45
The SMC MDB1L63-175NZ-M9NZ MB1-Z Series Square Tube Type Air Cylinder is designed for efficiency and versatility. This air cylinder is 10% lighter for strokes between 50-100, thanks to the innovative redesign of the rod and head covers. It offers the flexibility to mount small auto switches on four different surfaces, enhancing its adaptability in various applications. Additionally, the optional fastener on the auto switch mounting groove provides effective dust prevention, ensuring longevity and reliability. This model comes equipped with an auto switch, compatible with Series MDB1, including MDB1, MDB1W, and MDB1K, making it a comprehensive solution for your pneumatic needs.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Axial Foot
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 175 mm
- Suffix For Cylinder:
- None Rod Boot,Rubber Bumper
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- No Bracket
- Accessories2:
- No Bracket
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
